Product Description

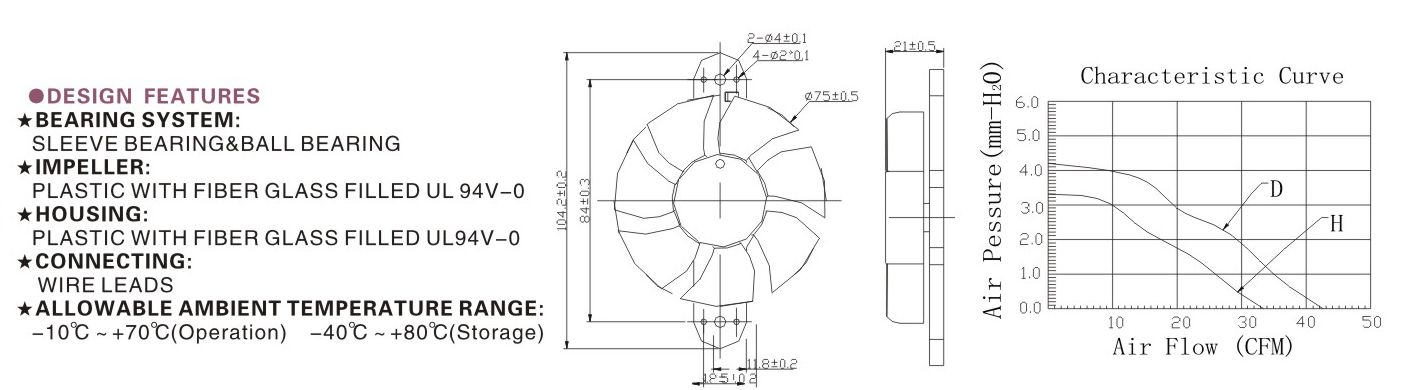

●DESIGN FEATURES
★BEARINGsvSTEM:
SLEEVEBEARING&BALL BEARING
★IMPELLER:
PLASTIC WITH FIBER GLASS FILLED UL 94V-0
★HOUSING:
PLASTIC WITH FIBER GLASS FILLED UL94V-0
★cONECTING:
WIRE LEADS
★ALLoWABLE AMBIENT TEMPERATURE RANGE:
-10℃ ~+70℃(Operation)-40℃ ~+80℃(Storage)
●SPECIFICATIONS
| Listed Model | Bearing System | Rated Voltage (VDC) | Startup Voltage (VDC) | Current (A) | Speed (RPM) | Air Flow (CFM) | Static Pressure (mmH₂O) | Noise Level (dBA) | WeightG |
| TD802518H | Sleeve | 18 | 6 | 0.15 | 3000 | 33.5 | 3.3 | 27.5 | 43 |
| TD802518D | Sleeve | 18 | 6 | 0.2 | 3800 | 42.4 | 4.18 | 32.5 | 43 |
