TD4030-M(3 phase motor)

Product Center

Page view:
Product name

TD4030-M(3 phase motor)

Numbering
Affiliate classification
没有此类产品
Product description




★lnsuation:Class B
★Type of protection:lP42
★Mode of operation:S1
★Certification:UL/CUL/CE/CCC
★Operation Temperature:-25--70℃
★Material:Sheet steel \Aluminum\Pa66
★Available Features:
·Tachilable Out put
·Autorestart
·Slow startup
·Pulse wIDTH Modulation
·control input 0--5VDC
★EMC:Interference emission acc.to EN 61000-6-3
★lnterference immunily acc.to EN 61000-6-2
★Product conforming to standard: EN 60950-1

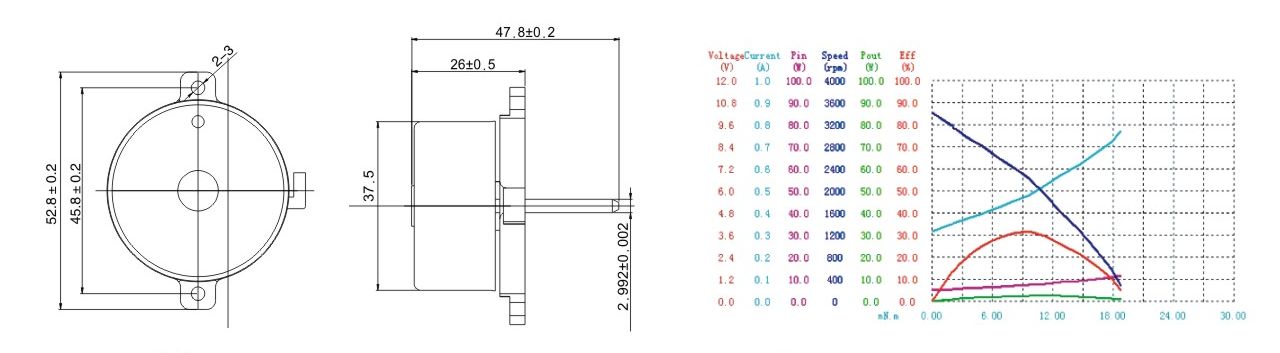

●SPECIFICATIONS


Model Bearing System Voltage v Voltage Range fAriallb0liolc0lp32;FREELOAD fAriallb0liolc0lp32;AT MAX EFFLCLENCY PAT MAX OUT POWER WeightG
Current (A) Speed (RPM) TORQUE(mN.m Speed (RPM) CurrentA OUTPUT(W) TORQUE(mN.m
TD403012HB-M Ball 12VDC 6—13.8 0.32 3415 9.66 2222 0.48 2.25 11.31 95
TD403024HB-M Ball 24VDC 12—26.4 0.16 3415 9.66 2222 0.24 2.25 11.31 95
