Product Description
★Insuation:Class B
★Tvpeofprotection:IP42
★Modeofoperation:S1
★Certification:UL\CUL\CE\CCC
★OperationTemperature e:-25--70℃
★Material:Sheetsteel\Aluminum\Pa66
★AvailableFeatures:·TachilableOutput
·Autorestart
. Slowstartup
·PulseWIDTHModulation
·Controlinput 0--5VDC
★EMC:InterferenceemissionacctoEN61000-6-3
★Interferenceimmunily ac cc.toEN61000-6-2

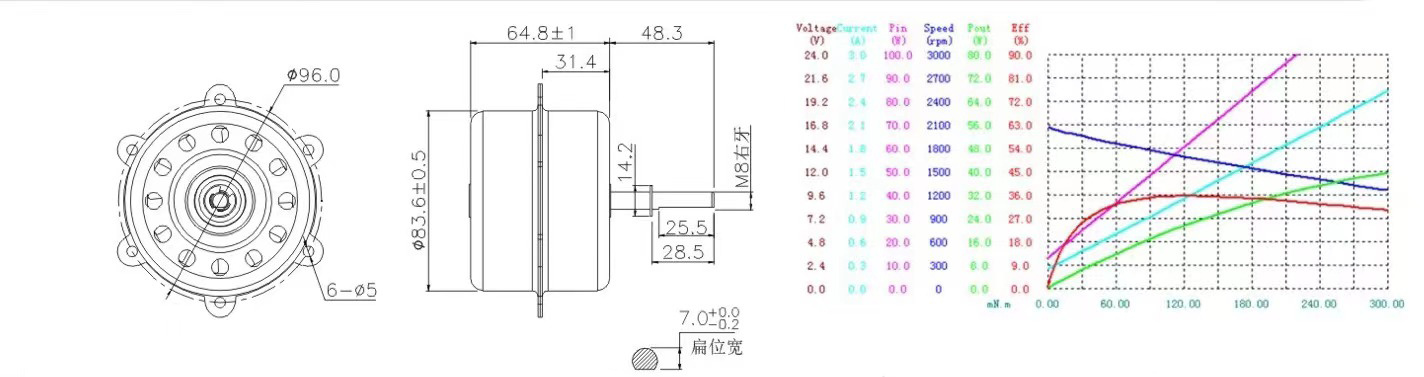

| MODEL | Bearing System | Voltage V | Voltage Range | fAriallboliolcolp32;FREELOAD | fAriallboliolcolp32;ATMAXEFFICIENCY | PAT MAX OUTPUT POWER | WeightG | ||||
| Current(A) | Speed(RPM) | TORQUE(mN.m) | Speed(RPM) | Current(A) | OUTPUT(W) | TORQUE(mN.m) | |||||
| TD856524HB-M | Ball | 24VDC | 12-26.4 | 0.25 | 2300 | 131.5 | 1659 | 1.23 | 134 | 306 | 1008 |
