TD11275-M

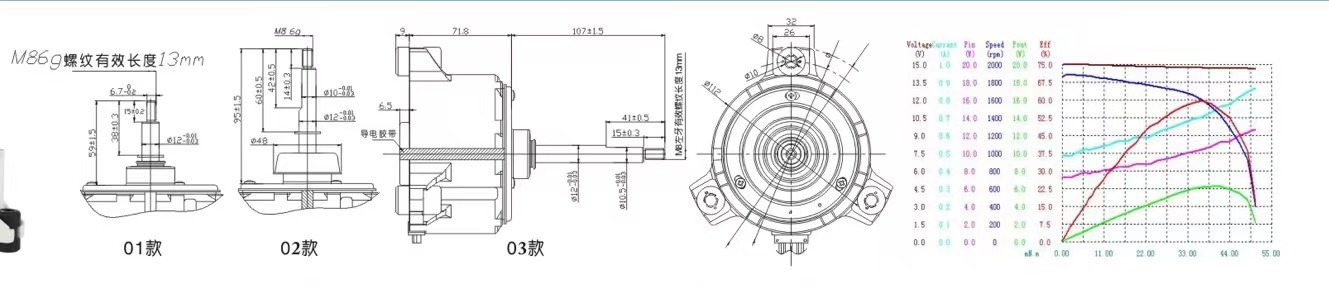

Outline:

Classification:

DC/EC Motor


Product Description

Insuation:Class B

Tvpeofprotection:IP42

Modeofoperation:S1

Certification:UL\CUL\CE\CCC

OperationTemperature e:-25--70

Material:Sheetsteel\Aluminum\Pa66

AvailableFeatures:·TachilableOutput

·Autorestart

. Slowstartup

·PulseWIDTHModulation

·Controlinput 0--5VDC

EMC:InterferenceemissionacctoEN61000-6-3

Interferenceimmunily ac cc.toEN61000-6-2

ProductconformingtostandardEN60950-1



MODEL Bearing System  Voltage V  Voltage Range  Rated performance FREE  LOAD WeightG
Current(A) Speed(RPM) TORQUE(mN.m) OUTPUT(W) PERFORMANCE SHELL PROTECTION
TD1127503H(M.L)B-M(01) Ball 310VDC 85-370 0.67 750 392 135 E级 IP44 2480
TD1127503H(M.L)B-M(02) Ball 310VDC 85-370 0.65 780 350 127 E级 IP44 2480
TD1127503H(M.L)B-M(03) Ball 310VDC 85-370 0.56 1200 300 120 E级 IP44 2480
