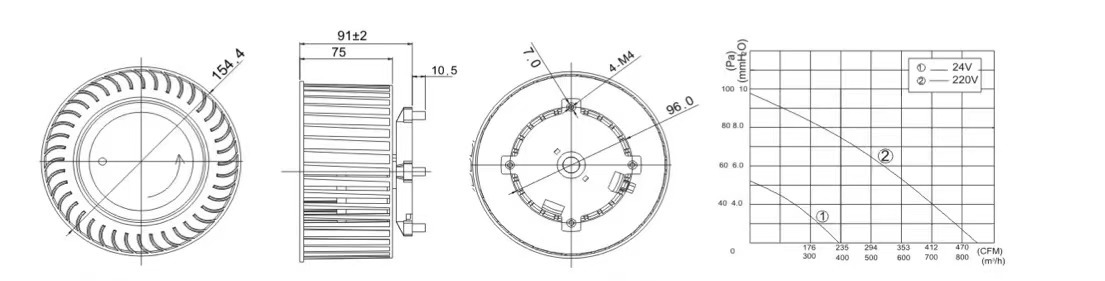

TD15475-MF
Outline：
Classification：
DC/EC Forwarded Curved Centrifugal Fan
Product Description
★Insuation:Class B
★Tvpeofprotection:IP42
★Modeofoperation:S1
★Certification:UL\CUL\CE\CCC
★OperationTemperature e:-25--70℃
★Material:Sheetsteel\Aluminum\Pa66
★AvailableFeatures:·TachilableOutput
·Autorestart
. Slowstartup
·PulseWIDTHModulation
·Controlinput 0--5VDC
★EMC:InterferenceemissionacctoEN61000-6-3
★Interferenceimmunily ac cc.toEN61000-6-2
★ProductconformingtostandardEN60950-1
| Model | Bearing System |
Voltage V |
Voltage Range | Current A |
Power W |
Speed RPM |
Noise DBA |
Air Flow | Static Pressure | Weight G |
||
| M³/H | CFM | Pa | mmH₂O | |||||||||
| TD1547524HB-MF | Ball | 24VDC | 20-28 | 0.43 | 10.32 | 1250 | 60 | 391 | 230 | 52.7 | 5.38 | 985 |
