TE16062-MF1

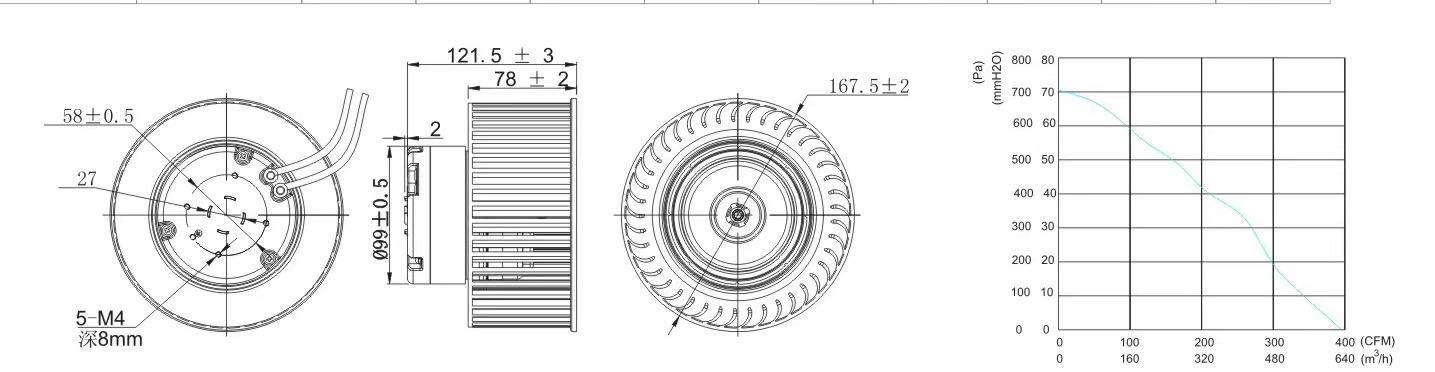

Outline:
Classification:
DC/EC Forwarded Curved Centrifugal Fan
Product Description
★Insuation:Class B
★Tvpeofprotection:IP42
★Modeofoperation:S1
★Certification:UL\CUL\CE\CCC
★OperationTemperature e:-25--70℃
★Material:Sheetsteel\Aluminum\Pa66
★AvailableFeatures:·TachilableOutput
·Autorestart
. Slowstartup
·PulseWIDTHModulation
·Controlinput 0--5VDC
★EMC:InterferenceemissionacctoEN61000-6-3
★Interferenceimmunily ac cc.toEN61000-6-2
★ProductconformingtostandardEN60950-1
Model | Bearing System |
Voltage V |
Voltage Range | Current A |
Power W |
Speed RPM |
Noise DBA |
Air Flow | Static Pressure | Weight G |
||
M³/H | CFM | Pa | mmH₂O | |||||||||
TE1606201HB-MF | Ball | 110AVC | 85-130 | 1.32 | 118 | 2500 | 67 | 634 | 373 | 709 | 72 | 1473.8 |
TE1606202HB-MF | Ball | 220AVC | 85-260 | 0.64 | 101 | 2500 | 67 | 634 | 373 | 709 | 72 | 1473.8 |
