TE-B150-G0 6 Inch Wall Window Ventilator - 1st Gear
Outline：
Classification：
New Product -Ventilation Fan
Product Description
Wall Window Ventilator - 1SPEED
◎Turbocharged wing blade and spiralinlet cover design to effectively reduce noise and raise wind pressure ◎Compactandsimplestructure,easyinstalleasymaintain. ◎Beautifulappearance and fashion. ◎Economical and affordable, one gear controls the air volume.
Weatherproof , safer The new weatherproof cover is installed at the rear to improve the weather resistance performance without affecting the air volume.

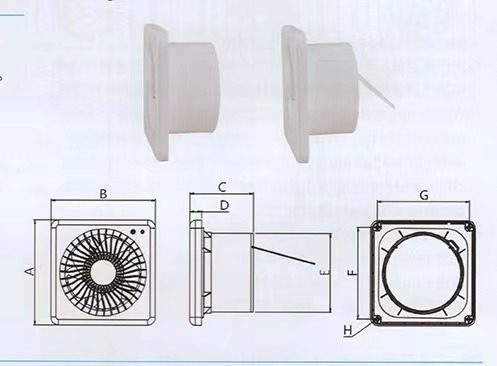

Product Dimensions
| Model | A | B | C | D | E | F | G | H | Hole Size | Installation glass thickness | ||
| TE-B150-G1 | 200.0 | 200.0 | 122.0 | 22.0 | 150.0 | 174.5 | 174.5 | Φ5.0 | Φ155-160 | 3~35 | ||
| TE-B180-G1 | 250.0 | 250.0 | 123.0 | 22.0 | 187.0 | 206.0 | 206.0 | Φ4.5 | Φ190-195 | 3~35 | ||
Technical Parameters
| Model | Voltage | Power | Airflow | Static Pressure | Noise |
| V | W | m3/h | pa | DBA | |
| TE-B150-G0 | 220/110 | 6.3 | 160 | 46 | 33 |
| TE-B180-G0 | 220/110 | 4.6 | 300 | 30 | 36 |
Note:
1.The noise value is the average value of the test values 1.0m away from the left, right, front and side of the fan.
