Product Center

Page view:
Product name

TD TE140160-K

Numbering
TD TE140160-K
Affiliate classification
没有此类产品
Product description




★lnsuation:Class B
★Type of protection:lP42
★Mode of operation:S1
★Certification:UL/CUL/CE/CCC
★Operation Temperature:-25--70℃
★Material:Sheet steel \Aluminum\Pa66
★Available Features:
·Tachilable Out put
·Autorestart
·Slow startup
·Pulse wIDTH Modulation
·control input 0--10VDC
★EMC:Interference emission acc.to EN 61000-6-3
★lnterference immunily acc.to EN 61000-6-2
★Product conforming to standard: EN 60950-1

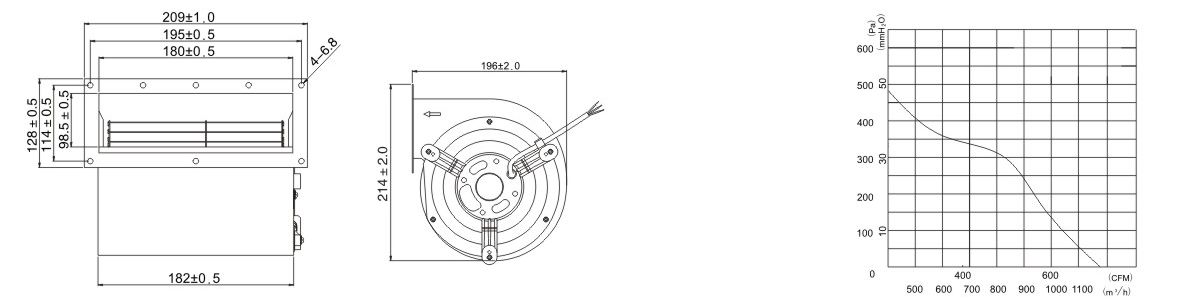

●SPECIFICATIONS


Model Bearing System Voltage v Voltage Range Current A Power W Speed RPM Noise DBA Air Flow Static Pressure Weight G
M³/H CFM Pa mmHO
TE14016001HB-K Ball 110VAC 85—130 1.75 140 1600 65 1060 623 602 60.2 3095
TE14016002HB-K Ball 220VAC 85—265 0.94 145 1600 65 1060 623 602 60.2 3135
TD14016024HB-K Ball 24VDC 20—28 5.2 125 1600 65 1060 623 602 60.2 3082
TD14016048HB-K Ball 48VDC 24—57 2.8 134.4 1600 65 1060 623 602 60.2 3073
