Product Description
★lnsuation:Class B
★Type of protection:lP42
★Mode of operation:S1
★Certification:UL/CUL/CE/CCC
★Operation Temperature:-25--70℃
★Material:Sheet steel \Aluminum\Pa66
★Available Features:
·Tachilable Out put
·Autorestart
·Slow startup
·Pulse wIDTH Modulation
·control input 0--10VDC
★EMC:Interference emission acc.to EN 61000-6-3
★lnterference immunily acc.to EN 61000-6-2
★Product conforming to standard: EN 60950-1

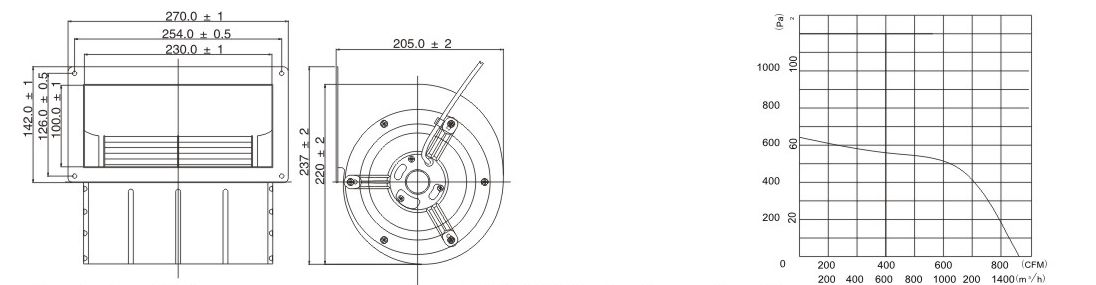

●SPECIFICATIONS
| Model | Bearing System | Voltage v | Voltage Range | Current A | Power W | Speed RPM | Noise DBA | Air Flow | Static Pressure | Weight G | ||
| M³/H | CFM | Pa | mmH₂O | |||||||||
| TE14618002HB-K | Ball | 220VAC | 85―265 | 1 | 169 | 1300 | 63.5 | 1065 | 626 | 319.5 | 31.9 | 3898 |
| TE14618001HB-K | Ball | 110VAC | 85—130 | 2 | 169 | 1300 | 63.5 | 1065 | 626 | 319.5 | 31.9 | 3898 |
| TD14618048HB-K | Ball | 48VDC | 24—57 | 3.5 | 169 | 1300 | 63.5 | 1065 | 626 | 319.5 | 31.9 | 3898 |
| TD14618024HB-K | Ball | 24VDC | 20—28 | 5.2 | 125 | 1300 | 63.5 | 1065 | 626 | 319.5 | 31.9 | 3898 |
