Product Description
●DESIGN FEATURES
★BEARINGsvSTEM:
SLEEVEBEARING&BALL BEARING
★IMPELLER:
PLASTIC WITH FIBER GLASS FILLED UL 94V-0
★HOUSING:
PLASTIC WITH FIBER GLASS FILLED UL94V-0
★cONECTING:
WIRE LEADS
★ALLoWABLE AMBIENT TEMPERATURE RANGE:
-10℃ ~+70℃(Operation)-40℃ ~+80℃(Storage)

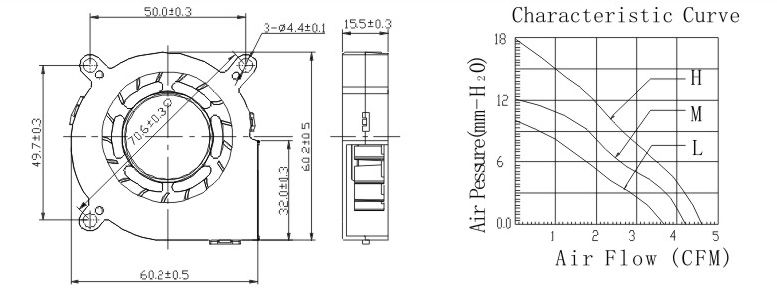

●SPECIFICATIONS
| Listed Model | Bearing System | Rated Voltage (VDC) | Startup Voltage (VDC) | Current (A) | Speed (RPM) | Air Flow (CFM) | Static Pressure (mmH20) | Noise Level (dBA) | Weight (g) |
| TD601512L | Sleeve or ball | 12 | 6.0 | 0.12 | 3500 | 3.68 | 10.01 | 33.5 | 35 |
| TD601512M | Sleeve or ball | 12 | 6.0 | 0.13 | 4000 | 4.2 | 12.13 | 38.8 | 35 |
| TD601512H | Sleeve or ball | 12 | 6.0 | 0.17 | 4500 | 4.6 | 17.95 | 42.6 | 35 |
| TD601524L | Sleeve or ball | 24 | 12.0 | 0.09 | 3500 | 3.68 | 10.01 | 33.5 | 35 |
| TD601524M | Sleeve or ball | 24 | 12.0 | 0.11 | 4000 | 4.2 | 12.13 | 38.8 | 35 |
| TD601524H | Sleeve or ball | 24 | 12.0 | 0.13 | 4500 | 4.6 | 17.95 | 42.6 | 35 |
