Product Center

Page view:
Product name

TD5015-K

Numbering
TD5015-K
Affiliate classification
没有此类产品
Product description

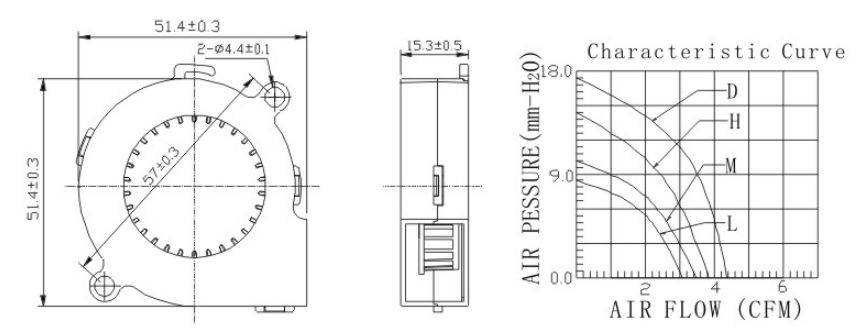

●DESIGN FEATURES
★BEARINGsvSTEM:
SLEEVEBEARING&BALL BEARING
★IMPELLER:
PLASTIC WITH FIBER GLASS FILLED UL 94V-0
★HOUSING:
PLASTIC WITH FIBER GLASS FILLED UL94V-0
★cONECTING:
WIRE LEADS
★ALLoWABLE AMBIENT TEMPERATURE RANGE:
-10℃ ~+70℃(Operation)-40℃ ~+80℃(Storage)

●SPECIFICATIONS


Listed Model Bearing System Rated Voltage (VDC) Startup Voltage (VDC) Current (A) Speed (RPM) Air Flow (CFM) Static Pressure (mmH20) Noise Level (dBA) Weight (g)
TD501512L Sleeve or ball 12 6.0 0.05 3500 3.07 8.40 28.35 25.0
TD501512M Sleeve or ball 12 6.0 0.06 4000 3.5 10.11 32.4 25.0
TD501512H Sleeve or ball 12 6.0 0.10 4500 3.84 14.96 36.5 25.0
TD501512D Sleeve or ball 12 6.0 0.12 5000 4.38 17.5 40.5 25.0
TD501505L Sleeve or ball 5 3.5 0.11 3500 3.07 8.40 28.35 25.0
TD501505M Sleeve or ball 5 3.5 0.14 4000 3.5 10.11 32.4 25.0
TD501505H Sleeve or ball 5 3.5 07 4500 3.84 14.96 36.5 25.0
TD501505D Sleeve or ball 5 3.5 0.21 5000 4.38 17.5 40.5 25.0
Corresponding parameter set not found, please add it in property template of background
暂未实现,敬请期待
暂未实现,敬请期待
