PRODUCTS CENTER
Product Description
●DESIGN FEATURES
★BEARINGsvSTEM:
SLEEVEBEARING&BALL BEARING
★IMPELLER:
PLASTIC WITH FIBER GLASS FILLED UL 94V-0
★HOUSING:
PLASTIC WITH FIBER GLASS FILLED UL94V-0
★cONECTING:
WIRE LEADS
★ALLoWABLE AMBIENT TEMPERATURE RANGE:
-10℃ ~+70℃(Operation)-40℃ ~+80℃(Storage)

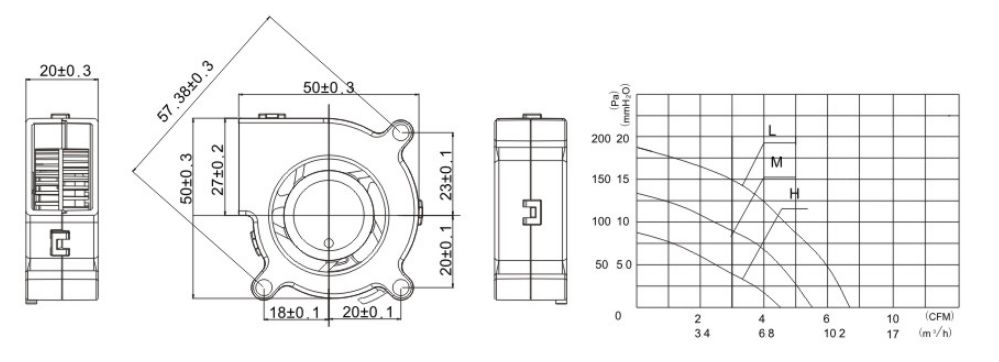

●SPECIFICATIONS
| Model | Bearing System | Voltage v | Voltage Range | Current A | Power W | Speed RPM | Noise DBA | Air Flow | Static Pressure | Weight G | ||
| M³/H | CFM | Pa | mmH2O | |||||||||
| TD502012LB-K | Ball/sleeve | 12VDC | 5—13.8 | 0.12 | 1.44 | 3700 | 28.0 | 7.56 | 4.45 | 76.9 | 7.85 | 32 |
| TD502012MB-K | Ball / sleeve | 12VDC | 5—13.8 | 0.14 | 1.68 | 4500 | 33.8 | 9.36 | 5.51 | 128.6 | 13.12 | 32 |
| TD502012HB-K | Ball / sleeve | 12VDC | 5—13.8 | 0.23 | 2.76 | 5300 | 38.5 | 11.46 | 6.75 | 182 | 18.6 | 32 |
