Product Description
★lnsuation:Class B
★Type of protection:lP42
★Mode of operation:S1
★Certification:UL/CUL/CE/CCC
★Operation Temperature:-25--70℃
★Material:Sheet steel \Aluminum\Pa66
★Available Features:
·Tachilable Out put
·Autorestart
·Slow startup
·Pulse wIDTH Modulation
·control input 0--10VDC
★EMC:Interference emission acc.to EN 61000-6-3
★lnterference immunily acc.to EN 61000-6-2
Product conforming to standard: EN 60950-1

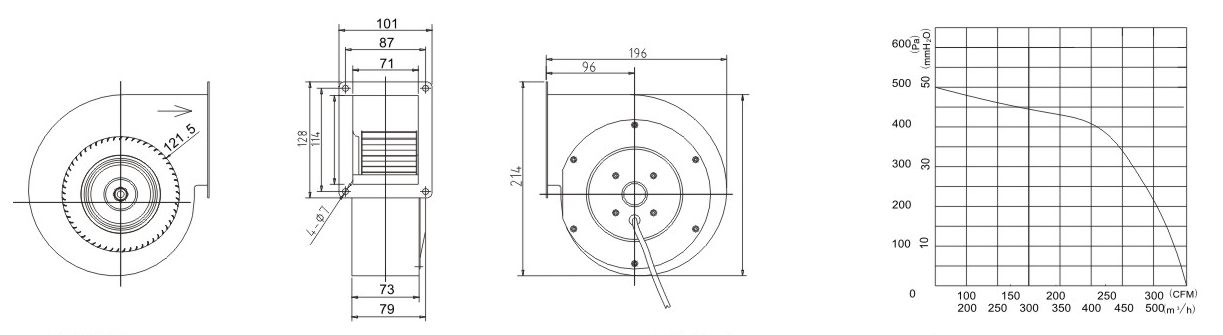

●SPECIFICATIONS
| Model | Bearing System | Voltage v | Voltage Range | Current A | Power W | Speed RPM | Noise DBA | Air Flow | Static Pressure | Weight G | ||
| M³/H | CFM | Pa | mmH₂O | |||||||||
| TD14O5924HB-K | Ball | 24VDC | 20--28 | 5.4 | 129 | 2700 | 74.5 | 540 | 317.5 | 750 | 75 | 2378 |
| TD14O5948HB-K | Ball | 48VDC | 24--57 | 2.7 | 129 | 2700 | 74.5 | 540 | 317.5 | 750 | 75 | 2382 |
