Product Center

Page view:
Product name

TE16062-K1

Numbering
TE16062-K1
Affiliate classification
没有此类产品
Product description




★lnsuation:Class B
★Type of protection:lP42
★Mode of operation:S1
★Certification:UL/CUL/CE/CCC
★Operation Temperature:-20--70℃
★Material:Pa66
★Available Features:
·Tachilable Out put
·Autorestart
·Slow startup
·Pulse wIDTH Modulation
·control input 0--10VDC
★EMC:Interference emission acc.to EN 61000-6-3
★lnterference immunily acc.to EN 61000-6-2
Product conforming to standard: EN 60950-1

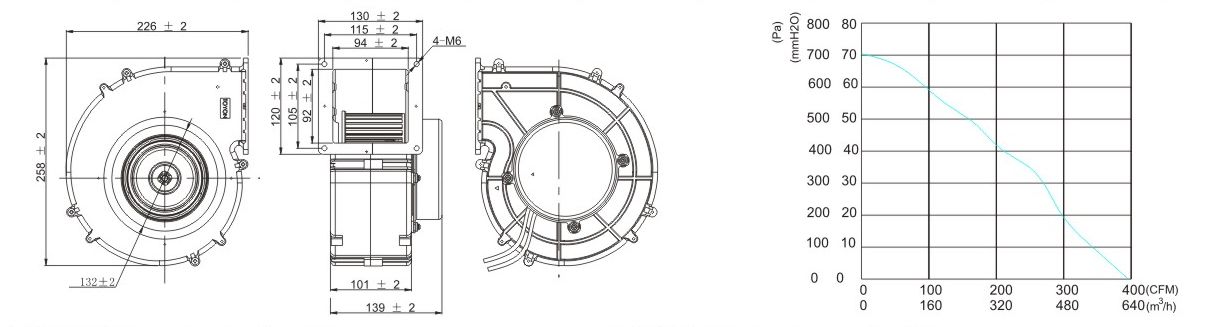

●SPECIFICATIONS


Model Bearing System Voltage v Voltage Range Current A Power W Speed RPM Noise DBA Air Flow Static Pressure Weight G
M³/H CFM Pa mmHO
TE1606201HB-K1 Ball 110VAC 85-130 1.3 145 1900 67 634 373 709 72 2234
TE1606202HB-K1 Ball 220VAC 85-260 0.91 148 1900 67 634 373 709 72 2234
