TD11050-MF

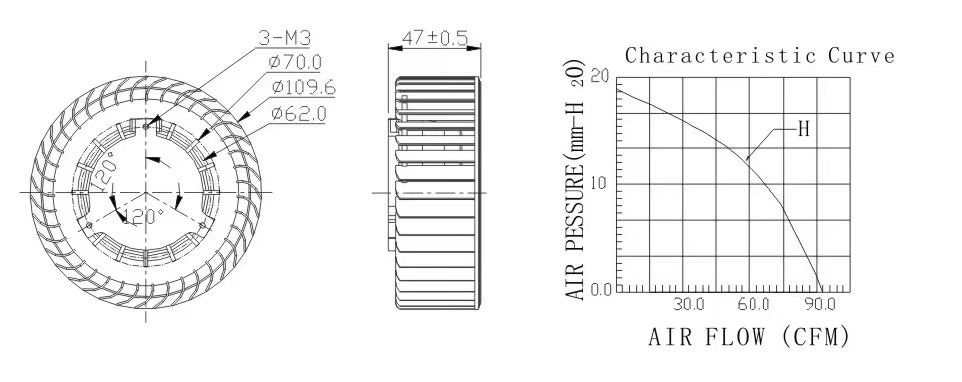

Outline:
Classification:
DC/EC Forwarded Curved Centrifugal Fan
Product Description
ODESIGN FEATURES
★BEARING SYSTEM:SLEEVEBEARING&BALLBEARING
★IMPELLER:PLASTICWITH FIBERGLASSFILLEDUL94V-0
★HOUSING:PLASTIC WITH FIBERGLASSFILLEDUL94V-0
★CONNECTING: WIRELEADS
★ALLOWABLE AMBIENTTEMPERATURE RANGE: -10℃~+70℃(Operation)-40℃~+80℃(Storage)
Listed Modle |
Bearing System |
Rated Voltage (VDC) |
Startup Voltage (VDC) |
Current (A) |
Speed (RPM) |
Air Flow (CFM) |
Static Pressure (mmH₂O) |
Noise Level (dBA) |
Weight (g) |
TD115012H | Ball | 12 | 9.0 | 1.25 | 2000 | 92 | 19.3 | 69.4 | 182 |
