Product name

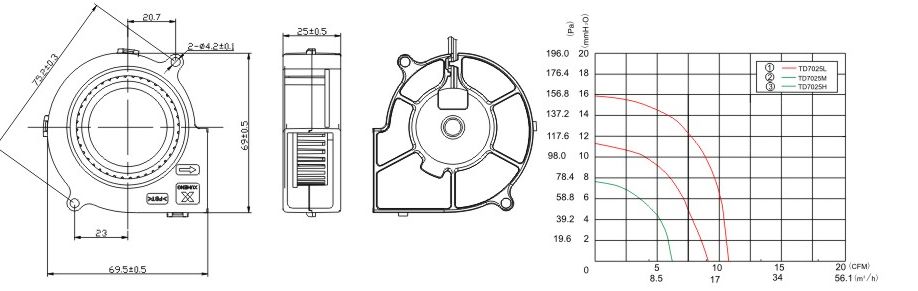

TD7025-K

Numbering
TD7025-K
Affiliate classification
没有此类产品
Product description

●DESIGN FEATURES
★BEARINGsvSTEM:
SLEEVEBEARING&BALL BEARING
★IMPELLER:
PLASTIC WITH FIBER GLASS FILLED UL 94V-0
★HOUSING:
PLASTIC WITH FIBER GLASS FILLED UL94V-0
★cONECTING:
WIRE LEADS
★ALLoWABLE AMBIENT TEMPERATURE RANGE:
-10℃ ~+70℃(Operation)-40℃ ~+80℃(Storage)

●SPECIFICATIONS


Model Bearing System Voltage v Voltage Range Current A Power W Speed RPM Noise DBA Air Flow Static Pressure
M³/H CFM Pa mmH2O
TD702512L Sleeve/Ball 12VDC 6—13.2 0.05 0.6 2000 16.88 9.6 5.64 76.57 7.81
TD702512M Sleeve/Ball 12 VDC 6—13.2 0.11 1.32 3000 25.32 14.4 8.46 114.86 11.72
TD702512H Sleeve/Ball 12 VDC 6—13.2 0.28 3.36 4000 33.67 19.15 11.25 152.76 15.59
TD702524L Sleeve/Ball 24VDC 12—26.4 0.03 0.72 2000 16.88 9.6 5.64 76.57 7.81
TD702524M Sleeve/Ball 24VDC 12—26.4 0.05 1.2 3000 25.32 14.4 8.46 114.86 11.72
TD702524H Sleeve/Ball 24VDC 12—26.4 0.13 3.12 4000 33.67 19.15 11.25 152.76 15.59
