TE-C150-G0 Air Outlet φ150mm Metal Duct Fan - Intelligent
Outline:
Classification:
New Product -Ventilation Fan
Product Description
180°PIPELIN EXHAUST FAN METAL - Cover-Intelligent Type
◎Ultra-thin thickness,effective savinginstallation height
◎Verylow noiselowpower.
◎Theinnovative fixed bracket design can beinstalled horizontally and vertically,and is suitable for various places to be used.
◎Metalcover,highhardnesscorrosionresistanceanti-deformation
◎When the productisturnedonthe powersupplycanbe operated 24 hours without cutting offandthe productautomatically adjusts the change of gas volume with the change ofair qualityin the use placeso as to ensure the comfort of the use place.
◎Wirelesscontrollogic:
Temperature: I (<25℃) II (25°℃-28℃) III (>28℃)
Humidity: I (<50%) II (50%-80%) III (>80%)
VOC: I (0、1) II (2) III(3)

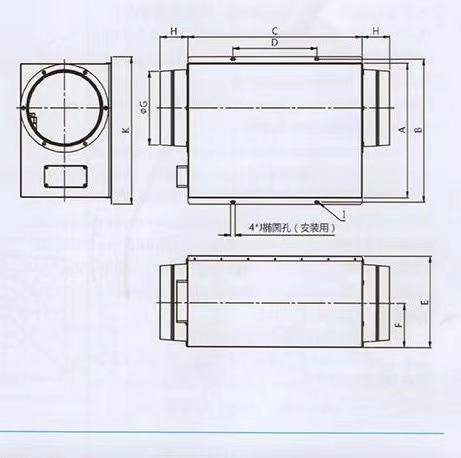

Product Dimensions
Model | A | B | C | D | E | F | G | H | I | J | K |
TE-C100-GO | 211.6 | 240.0 | 301.6 | 160.0 | 130.0 | 54.0 | 97.0 | 60.5 | Φ8.0 | 13.0 | 256.0 |
TE-C150-GO | 302.3 | 330.2 | 382.2 | 184.4 | 200.0 | 95 | 146.0 | 68.6 | Φ8.0 | 13.0 | 346.2 |
TE-C200-GO | 349.6 | 378.0 | 456.6 | 220.0 | 237.8 | 115.5 | 196.0 | 72.2 | Φ8.0 | 13.0 | 394.0 |
Technical Parameters
Model | Voltage V |
Power W |
Airflow m3/h |
Static Pressure pa |
Noise DBA |
Pipeline size(mm) |
TE-C100-GO | 220/110 | 7~13~20 | 102~132~162 | 71~123~179 | 29.5~32~34 | Φ100 |
TE-C150-GO | 220/110 | 22.4~44.3~64.3 | 330~420~504 | 156~288~424 | 32.5~37.6~44.5 | Φ150 |
TE-C200-GO | 220/110 | 26.7~80.4~138 | 560~850~1050 | 185~479~581 | 38.7~40.5~41.2 | Φ200 |
Note:
The noise value is the average value ofthe faninl et, the outlet is connected to the 1m air guide pipe,ar nd the distance between thefront,the backandthelowerthree directions s is 1.5 m.
