Product Description
●DESIGN FEATURES
★BEARINGsvSTEM:
SLEEVEBEARING&BALL BEARING
★IMPELLER:
PLASTIC WITH FIBER GLASS FILLED UL 94V-0
★HOUSING:
PLASTIC WITH FIBER GLASS FILLED UL94V-0
★cONECTING:
WIRE LEADS
★ALLoWABLE AMBIENT TEMPERATURE RANGE:
-10℃ ~+70℃(Operation)-40℃ ~+80℃(Storage)

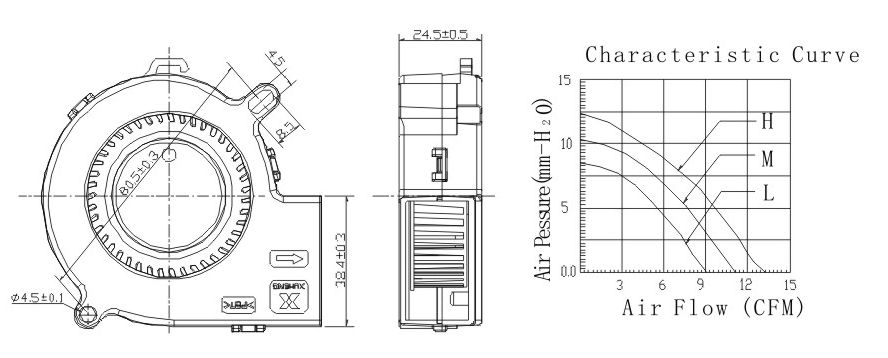

●SPECIFICATIONS
| Listed Model | Bearing System | Rated Voltage (VDC) | Startup Voltage (VDC) | Current (A) | Speed (RPM) | Air Flow (CFM) | Static Pressure (mmH20) | Noise Level (dBA) | Weight (g) |
| TD752512L | Sleeve or ball | 12 | 6.0 | 0.13 | 2200 | 9.11 | 8.45 | 27.2 | 68 |
| TD752512M | Sleeve or ball | 12 | 6.0 | 0.16 | 2700 | 11.12 | 10.36 | 33.3 | 68 |
| TD752512H | Sleeve or ball | 12 | 6.0 | 0.21 | 3200 | 13.25 | 12.29 | 39.5 | 68 |
| TD752524L | Sleeve or ball | 24 | 12.0 | 0.09 | 2200 | 9.11 | 8.45 | 27.2 | 68 |
| TD752524M | Sleeve or ball | 24 | 12.0 | 0.13 | 2700 | 11.12 | 10.36 | 33.3 | 68 |
| TD752524H | Sleeve or ball | 24 | 12.0 | 0.18 | 3200 | 13.25 | 12.29 | 39.5 | 68 |
