TE-A100-G1 Air Outlet φ100mm Plastic Blower - Smart

Outline:

Classification:

New Product -Ventilation Fan


Product Description

90 °vertical Ventilation Fan Plastic Cover-Intelligent Type

Product Advantage

Ultra-small Volume design , Save installation space.

Very low nise, lowe power.

The multi-direction installation is suitable for use in a variety of places

 When the product is turned on, the power supply can be operated 24 hours without cutting off, the product automatically adjusts the change of gas volume with the change of air quality in the use place, so as to ensure the comfort of the use place.

 Automatica intelligent control speed by air quality :

Temperature:  I(< 25℃)     II( 25℃~28℃)       III(>28℃)

Humidity: I( <50%)   II (50%~80%)  III(>80%)

VOC: I(0,1)    II(2)      III(3)

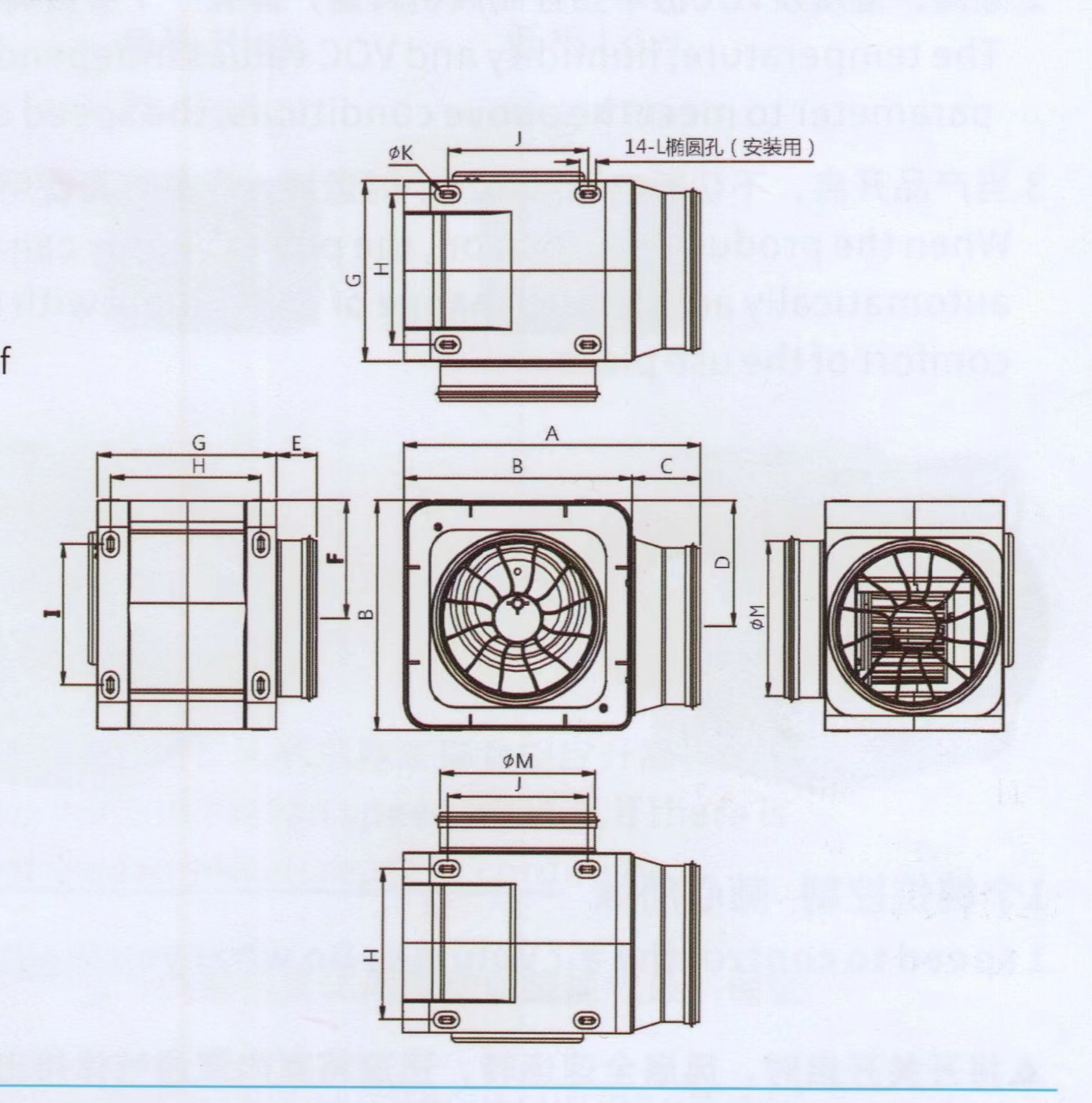

Product Dimensions

Model A B C D E F G H I J K L M
TE-A100-G1 233.0  168.0  65.0  65.0  48.0  85.0  120.0  142.5 103.5 103.0  6.0  15.0  97.0
TE-A150-G0 21.5 216.5 65.0  118.5 38.0  111.5 170.0  166.0  133.0  133.0  6.0  15.0  147.0

Technical Parameters

Model Voltage
 V
Power
W
Airflow
m3/h
Static Pressure
pa
Noise
 DBA
Pipeline
size(mm)
TE-A100-G1 220/110 3.6~8~15.4 90~138~168 55~129~228 24.6~28.2~35.1 Φ100
TE-A150-G0 220/110 11.5~16.8~26.8 250~300~350 86~118~167 31.8~34.5~37.8 Φ150



Note:

1.TE-A100-G1is a super-energy-saving product wit h monthly consumption of 1 KW.

2.The noise value is the average value ofthe faninl et, the outlet is connected to the 1m air guide pipe,ar nd the distance between thefront,the backandthelowerthree directions s is 1.5 m.
