Product Description
●DESIGN FEATURES
★BEARINGsvSTEM:
SLEEVEBEARING&BALL BEARING
★IMPELLER:
PLASTIC WITH FIBER GLASS FILLED UL 94V-0
★HOUSING:
PLASTIC WITH FIBER GLASS FILLED UL94V-0
★cONECTING:
WIRE LEADS
★ALLoWABLE AMBIENT TEMPERATURE RANGE:
-10℃ ~+70℃(Operation)-40℃ ~+80℃(Storage)

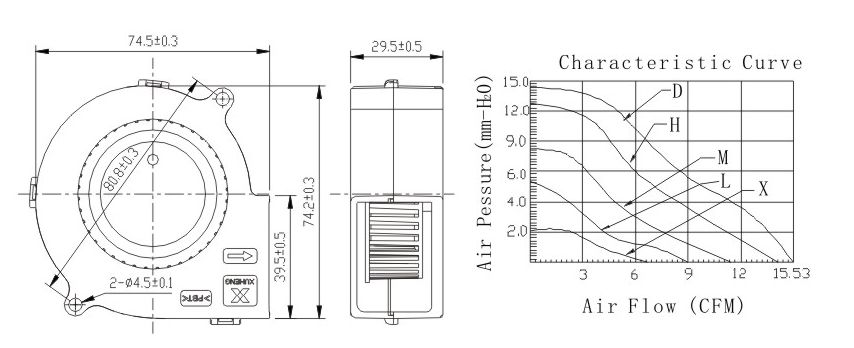

●SPECIFICATIONS
| Listed Model | Bearing System | Rated Voltage (VDC) | Startup Voltage (VDC) | Current (A) | Speed (RPM) | Air Flow (CFM) | Static Pressure (mmH20) | Noise Level (dBA) | Weight (g) |
| TD753024L | Sleeve or ball | 24 | 12.0 | 0.07 | 2200 | 8.99 | 5.30 | 32.8 | 75.0 |
| TD753024M | Sleeve or ball | 24 | 12.0 | on | 2800 | 11.44 | 8.20 | 36.4 | 75.0 |
| TD753024H | Sleeve or ball | 24 | 12.0 | 0.14 | 3400 | 13.89 | 12.80 | 40.3 | 75.0 |
| TD753024D | Sleeve or ball | 24 | 12.0 | 0.22 | 3800 | 15.53 | 14.30 | 45.04 | 75.0 |
| TD753012X | Sleeve or ball | 12 | 6.0 | 0.05 | 1300 | 6.7 | 2.10 | 24.6 | 75.0 |
| TD753012L | Sleeve or ball | 12 | 6.0 | 0.08 | 2200 | 8.99 | 5.30 | 32.8 | 75.0 |
| TD753012M | Sleeve or ball | 12 | 6.0 | 0.12 | 2800 | 11.44 | 8.20 | 36.4 | 75.0 |
| TD753012H | Sleeve or ball | 12 | 6.0 | 0.23 | 3400 | 13.89 | 12.80 | 40.3 | 75.0 |
| TD753012D | Sleeve or ball | 12 | 6.0 | 0.28 | 3800 | 15.53 | 14.30 | 45.04 | 75.0 |
