Product Description
★Insuation:Class B
★Tvpeofprotection:IP42
★Modeofoperation:S1
★Certification:UL\CUL\CE\CCC
★OperationTemperature e:-25--70℃
★Material:Sheetsteel\Aluminum\Pa66
★AvailableFeatures:·TachilableOutput
·Autorestart
. Slowstartup
·PulseWIDTHModulation
·Controlinput 0--5VDC
★EMC:InterferenceemissionacctoEN61000-6-3
★Interferenceimmunily ac cc.toEN61000-6-2

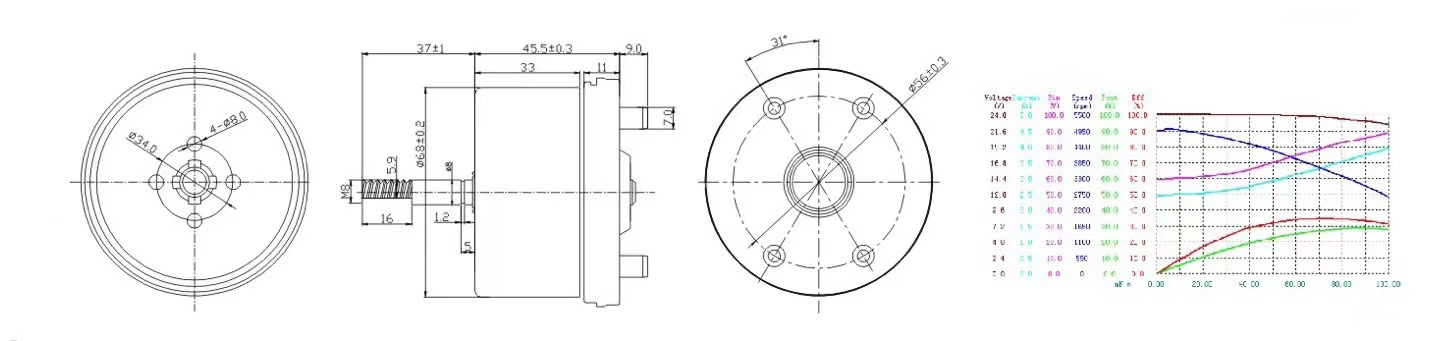

| MODEL | Bearing System | Voltage V | Voltage Range | fAriallboliolcolp32;FREELOAD | fAriallboliolcolp32;ATMAXEFFICIENCY | PAT MAX OUTPUT POWER | WeightG | ||||
| Current(A) | Speed(RPM) | TORQUE(mN.m) | Speed(RPM) | Current(A) | OUTPUT(W) | TORQUE(mN.m) | |||||
| TD685612HB-M | Ball | 12VDC | 6-13.8 | 2.46 | 4960 | 98.4 | 3737 | 3.28 | 26.84 | 180 | 487 |
| TD685624HB-M | Ball | 24VDC | 12-26.4 | 1.23 | 4960 | 98.4 | 3737 | 1.64 | 26.84 | 180 | 487 |
