Product name

TD1225-0

Numbering
TD1225-0
没有此类产品
Product description




●DESIGN FEATURES
★BEARING sYSTEM:
SLEEVE BEARING&BALL BEARING
★IMPELLER:
PLASTIC WITH FIBER GLASS FILLED UL94V-0
★HOUsING:
PLASTICWITH FIBER GLASS FILLED UL94V-0
★cONNECTING:
WIRELEADS
★ALLOWABLE AMBIENT TEMPERATURE RANGE:-10℃ ~+70℃(Operation) -40℃ ~+80℃(Storage)

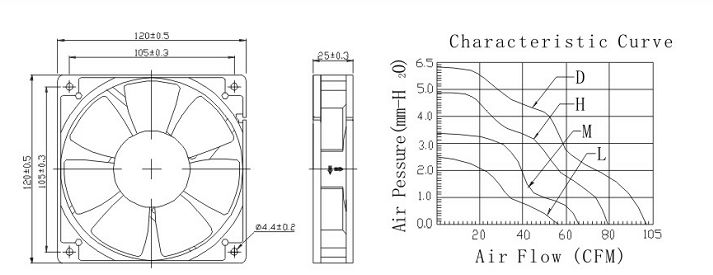

●SPECIFICATIONS

Listed Model Bearing System Rated Voltage (VDC) Startup Voltage (VDC) Current (A) Speed (RPM) Air Flow (CFM) Static Pressure (mmH20) Noise Level (dBA) Weight (g)
TD122512L Sleeve or ball 12 6.0 0.12 1700 56.1 2.43 25.1 150.0
TD122512M Sleeve or ball 12 6.0 0.16 2000 66.0 3.36 28.6 150.0
TD122512H Sleeve or ball 12 6.0 0.32 2400 79.2 4.84 32.6 150.0
TD122512D Sleeve or ball 12 6.0 0.40 2800 102.3 6.25 39.6 150.0
TD122524L Sleeve or ball 24 12 0.11 1700 56.1 2.43 25.1 150.0
TD122524M Sleeve or ball 24 12 0.13 2000 66.0 3.36 28.6 150.0
TD122524H Sleeve or ball 24 12 0.19 2400 79.2 4.84 32.6 150.0
TD122524D Sleeve or ball 24 12 0.36 3100 102.3 6.25 39.6 150.0
