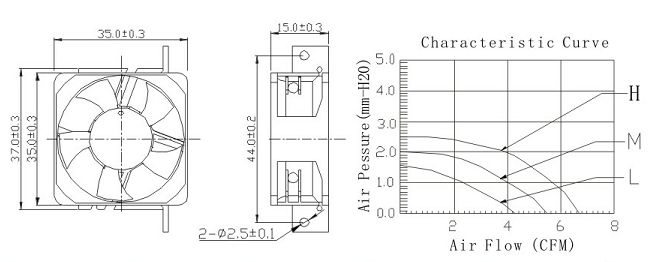

TD 3515
●DESIGN FEATURES
★BEARING svSTEM:
SLEEVEBEARING&BALL BEARING
★IMPELLER:
PLASTIC WITH FIBER GLASS FILLED UL 94V-o
★HoUsING:
PLASTIC WITH FIBER GLASS FILLED UL94V-o
★cONNECTING:
WIRE LEADS
★ALLOWABLE AMBIENT TEMPERATURE RANGE:-10℃~+70℃(Operation)-40℃~+80℃(Storage)
●SPECIFICATIONS
| Listed Model | Bearing System | Rated Voltage (VDC) | Startup Voltage (VDC) | Current (A) | Speed (RPM) | Air Flow (CFM) | Static Pressure (mmH20) | Noise Level (dBA) | Weight (g) |
| TD351512L | Sleeve | 12 | 6.0 | 0.11 | 7000 | 4.28 | 1.58 | 20.24 | 9.0 |
| TD351512M | Sleeve | 12 | 6.0 | 0.22 | 9000 | 5.51 | 2.03 | 26.03 | 9.0 |
| TD351512H | Sleeve | 12 | 6.0 | 0.29 | 11000 | 6.73 | 2.48 | 31.81 | 9.0 |
| TD351505L | Sleeve | 5 | 3.5 | 0.29 | 7000 | 4.28 | 1.58 | 20.24 | 9.0 |
| TD351505M | Sleeve | 5 | 3.5 | 0.36 | 9000 | 5.51 | 2.03 | 26.03 | 9.0 |
