Product name

TD 4010-0

Numbering
TD 4010-0
没有此类产品
Product description


●DESIGN FEATURES
★BEARING sYSTEM:
SLEEVE BEARING&BALL BEARING
★IMPELLER:
PLASTIC wITH FIBER GLASS FILLED UL 94v-o
★HOUsING:
PLASTIC WITHFIBER GLASS FILLED UL94V-o
★CONNECTING:
WIRE LEADS
★ALLOWABLE AMBIENT TEMPERATURE RANGE:-10℃~+70℃(Operation) -40℃~+80℃(Storage)

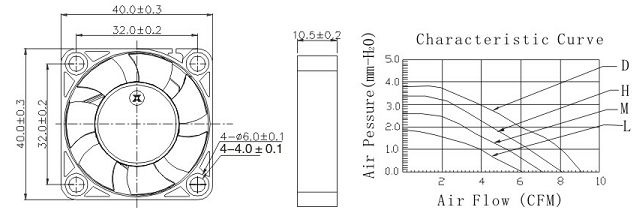

●SPECIFICATIONS



Listed Model Bearing System Rated Voltage (VDC) Startup Voltage (VDC) Current (A) Speed (RPM) Air Flow (CFM) Static Pressure (mmH20) Noise Level (dBA) Weight (g)
TD401012L Sleeve or ball 12 6.0 0.07 6000 6.1 1.88 22.6 13.0
TD401012M Sleeve or ball 12 6.0 0.09 7000 7.1 2.56 25.9 13.0
TD401012H Sleeve or ball 12 6.0 0.10 8000 8.1 3.35 28.8 13.0
TD401012D Sleeve or ball 12 6.0 0.11 9000 9.1 3.76 30.3 13.0
TD401005L Sleeve or ball 5 3.5 0.14 6000 6.1 1.88 22.6 13.0
TD401005M Sleeve or ball 5 3.5 0.17 7000 7.1 2.56 25.9 13.0
TD401005H Sleeve or ball 5 3.5 0.24 8000 8.1 3.35 28.8 13.0
Corresponding parameter set not found, please add it in property template of background
