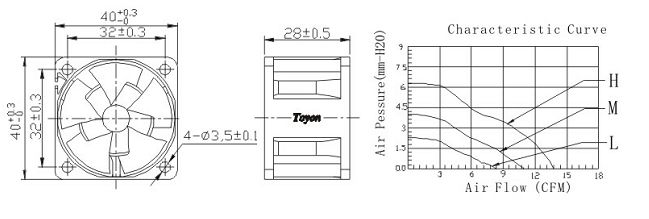

Product name

TD 4028

Numbering
TD 4028
没有此类产品
Product description




●DESIGN FEATURES
★ BEARING sYSTEM:
SLEEVE BEARING&BALL BEARING
★ IMPELLER:
PLASTIC WITH FIBER GLASS FILLED UL 94V-o
★HOUSING:
PLASTIC wITH FIBER GLASS FILLED UL94V-o
★CONNECTING:
WIRE LEADS
★ALLOWABLE AMBIENT TEMPERATURE RANGE:-10℃ ~+70c(operation) -40℃ ~+80c(Storage)

●SPECIFICATIONS


Listed Model Bearing System Rated Voltage (VDC) Startup Voltage (VDC) Current (A) Speed (RPM) Air Flow (CFM) Static Pressure (mmH20) Noise Level (dBA) Weight (g)
TD402812L Sleeve or ball 12 6.0 0.15 6000 8.3 2.26 26.5 34.0
TD402812M Sleeve or ball 12 6.0 0.24 8000 11.0 4.02 32.8 34.0
TD402812H Sleeve or ball 12 6.0 0.47 10000 13.8 6.3 37.6 34.0
TD402824L Sleeve or ball 24 12.0 0.07 6000 8.3 2.26 26.5 34.0
TD402824M Sleeve or ball 24 12.0 0.13 8000 11.0 4.02 32.8 34.0
TD402824H Sleeve or ball 24 12.0 0.30 10000 13.8 6.3 37.6 34.0
