Product name

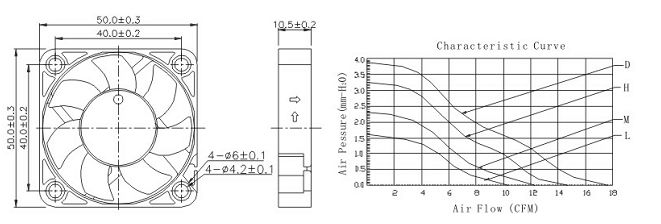

TD 5010

Numbering
TD 5010
没有此类产品
Product description




●DESIGN FEATURES
★BEARING sYSTEM:
SLEEVE BEARING&BALL BEARING
★ IMPELLER:
PLASTICWITH FIBER GLASS FILLED UL 94V-o
★HoUSING:
PLASTIC WITH FIBER GLASS FILLED UL94V-o
★CONNECTING:
WIRELEADS
★ALLOWABLE AMBIENT TEMPERATURE RANGE:-10℃~+70℃(Operation)-40℃~+80℃(Storage)

●SPECIFICATIONS


Listed Model Bearing System Rated Voltage (VDC) Startup Voltage (VDC) Current (A) Speed (RPM) Air Flow (CFM) Static Pressure (mmH20) Noise Level (dBA) Weight (g)
TD501012L Sleeve or ball 12 6.0 0.07 3500 10.3 1.58 26.2 18.0
TD501012M Sleeve or ball 12 6.0 0.09 4500 12.3 2.28 30.1 18.0
TD501012H Sleeve or ball 12 6.0 0.12 5000 14.7 3.23 33.9 18.0
TD501012D Sleeve or ball 12 6.0 0.17 5500 17.6 3.87 39.3 18.0
TD501005L Sleeve or ball 5 3.5 0.10 3500 10.3 1.58 26.2 18.0
TD501005M Sleeve or ball 5 3.5 0.16 4500 12.3 2.28 30.1 18.0
TD501005H Sleeve or ball 5 3.5 0.31 5000 14.7 3.23 33.9 18.0
