Product name

TD 5015

Numbering
TD 5015
没有此类产品
Product description




●DESIGN FEATURES
★BEARING sYSTEM:
SLEEVE BEARING&BALL BEARING
★IMPELLER:
PLASTIC WITH FIBER GLASS FILLED UL94V-o
★HOUsING:
PLASTICWITH FIBER GLASS FILLED UL94V-o
★cONNECTING:
WIRELEADS
★ALLOWABLE AMBIENT TEMPERATURE RANGE:-10℃ ~+70℃(Operation) -40℃ ~+80℃(Storage)

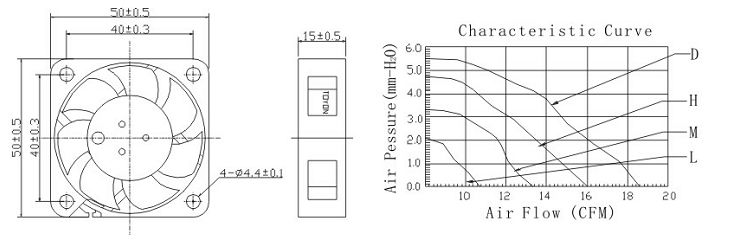

●SPECIFICATIONS


Listed Model Bearing System Rated Voltage (VDC) Startup Voltage (VDC) Current (A) Speed (RPM) Air Flow (CFM) Static Pressure (mmH20) Noise Level (dBA) Weight (g)
TD501512L Sleeve or ball 12 6.0 0.06 4000 10.7 2.10 25.5 26.0
TD501512M Sleeve or ball 12 6.0 0.09 5000 13.3 3.28 30.3 26.0
TD501512H Sleeve or ball 12 6.0 0.12 6000 16.0 4.72 34.3 26.0
TD501512D Sleeve or ball 12 9.0 0.20 7000 18.6 5.50 38.3 26.0
TD501505L Sleeve or ball 5 3.5 0.11 4000 10.7 2.10 25.5 26.0
TD501505M Sleeve or ball 5 3.5 0.17 5000 13.3 3.28 30.3 26.0
TD501505H Sleeve or ball 5 3.5 0.24 6000 16.0 4.72 34.3 26.0
Corresponding parameter set not found, please add it in property template of background
