Product name

TD 6020

Numbering
TD 6020
没有此类产品
Product description




●DESIGN FEATURES
★BEARING sYSTEM:
SLEEVE BEARING&BALL BEARING
★IMPELLER:
PLASTIC WITH FIBER GLASS FILLED UL94V-o
★HOUsING:
PLASTICWITH FIBER GLASS FILLED UL94V-o
★cONNECTING:
WIRELEADS
★ALLOWABLE AMBIENT TEMPERATURE RANGE:-10℃ ~+70℃(Operation) -40℃ ~+80℃(Storage)

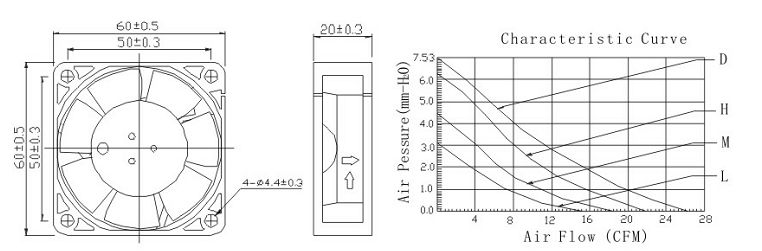

●SPECIFICATIONS


Listed Model Bearing System Rated Voltage (VDC) Startup Voltage (VDC) Current (A) Speed (RPM) Air Flow (CFM) Static Pressure (mmH20) Noise Level (dBA) Weight (g)
TD602012L Sleeve or ball 12 6.0 0.12 3500 15.3 3.08 24.2 46.0
TD602012M Sleeve or ball 12 6.0 0.17 4200 18.3 4.43 28.1 46.0
TD602012H Sleeve or ball 12 6.0 0.25 5000 21.8 6.28 31.9 46.0
TD602012D Sleeve or ball 12 6.0 0.40 6000 26.2 7.53 37.3 46.0
TD602024L Sleeve or ball 24 12 0.08 3500 15.3 3.08 24.2 46.0
TD602024M Sleeve or ball 24 12 0.11 4200 18.3 4.43 28.1 46.0
TD602024H Sleeve or ball 24 12 0.21 5000 21.8 6.28 31.9 46.0
TD602024D Sleeve or ball 24 12 0.25 6000 26.2 7.53 37.3 46.0
