Product name

TD 7025

Numbering
TD 7025
Affiliate classification
没有此类产品
Product description




●DESIGN FEATURES
★BEARING sYSTEM:
SLEEVE BEARING&BALL BEARING
★IMPELLER:
PLASTIC WITH FIBER GLASS FILLED UL94V-o
★HOUsING:
PLASTICWITH FIBER GLASS FILLED UL94V-o
★cONNECTING:
WIRELEADS
★ALLOWABLE AMBIENT TEMPERATURE RANGE:-10℃ ~+70℃(Operation) -40℃ ~+80℃(Storage)

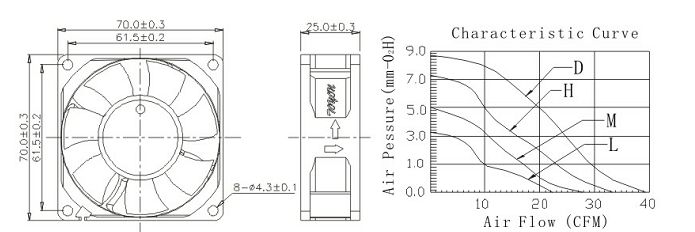

●SPECIFICATIONS


Listed Model Bearing System Rated Voltage (VDC) Startup Voltage (VDC) Current (A) Speed (RPM) Air Flow (CFM) Static Pressure (mmH20) Noise Level (dBA) Weight (g)
TD702512L Sleeve or ball 12 6.0 0.10 2500 22.1 3.23 24.2 60.0
TD702512M Sleeve or ball 12 6.0 0.20 3500 27.7 5.04 29.0 60.0
TD702512H Sleeve or ball 12 6.0 0.41 4500 33.2 7.26 33.0 60.0
TD702512D Sleeve or ball 12 6.0 0.54 5500 39.2 8.64 37.5 60.0
TD702524L Sleeve or ball 24 12 0.09 2500 22.1 3.23 24.2 60.0
TD702524M Sleeve or ball 24 12 0.15 3500 27.7 5.04 29.0 60.0
TD702524H Sleeve or ball 24 12 0.22 4500 33.2 7.26 33.0 60.0
TD702524D Sleeve or ball 24 12 0.35 5500 39.2 8.64 37.5 60.0
