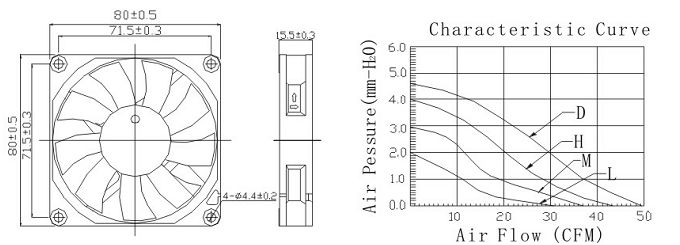

TD 8015
●DESIGN FEATURES
★BEARING sYSTEM:
SLEEVE BEARING&BALL BEARING
★IMPELLER:
PLASTIC WITH FIBER GLASS FILLED UL94V-o
★HOUsING:
PLASTICWITH FIBER GLASS FILLED UL94V-o
★cONNECTING:
WIRELEADS
★ALLOWABLE AMBIENT TEMPERATURE RANGE:-10℃ ~+70℃(Operation) -40℃ ~+80℃(Storage)
●SPECIFICATIONS
| Listed Model | Bearing System | Rated Voltage (VDC) | Startup Voltage (VDC) | Current (A) | Speed (RPM) | Air Flow (CFM) | Static Pressure (mmH20) | Noise Level (dBA) | Weight (g) |
| TD801512L | Sleeve or ball | 12 | 6.0 | 0.14 | 2500 | 30.8 | 2.05 | 31.9 | 50.0 |
| TD801512M | Sleeve or ball | 12 | 6.0 | 0.22 | 3000 | 36.9 | 2.95 | 35.9 | 50.0 |
| TD801512H | Sleeve or ball | 12 | 6.0 | 0.30 | 3500 | 43.1 | 4.02 | 39.2 | 50.0 |
| TD801524L | Sleeve or ball | 24 | 12 | 0.13 | 2500 | 30.8 | 2.05 | 31.9 | 50.0 |
| TD801524M | Sleeve or ball | 24 | 12 | 0.17 | 3000 | 36.9 | 2.95 | 35.9 | 50.0 |
| TD801524H | Sleeve or ball | 24 | 12 | 0.22 | 3500 | 43.1 | 4.02 | 39.2 | 50.0 |
| TD801524D | Sleeve or ball | 24 | 12 | 0.34 | 4000 | 49.2 | 4.59 | 42.5 | 50.0 |
