Product name

TD 8020

Numbering
TD 8020
没有此类产品
Product description




●DESIGN FEATURES
★BEARING sYSTEM:
SLEEVE BEARING&BALL BEARING
★IMPELLER:
PLASTIC WITH FIBER GLASS FILLED UL94V-o
★HOUsING:
PLASTICWITH FIBER GLASS FILLED UL94V-o
★cONNECTING:
WIRELEADS
★ALLOWABLE AMBIENT TEMPERATURE RANGE:-10℃ ~+70℃(Operation) -40℃ ~+80℃(Storage)

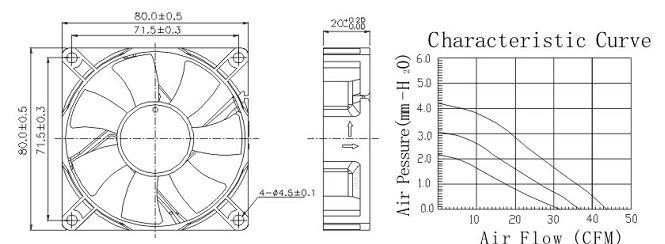

●SPECIFICATIONS


Listed Model Bearing System Rated Voltage (VDC) Startup Voltage (VDC) Current (A) Speed (RPM) Air Flow (CFM) Static Pressure (mmH20) Noise Level (dBA) Weight (g)
TD802012L Sleeve or ball 12 6.0 0.12 2500 31.6 2.15 26.0 52
TD802012M Sleeve or ball 12 6.0 0.20 3000 36.8 3.06 29.6 52
TD802012H Sleeve or ball 12 6.0 0.24 3500 43.7 4.20 32.5 52
TD802024L Sleeve or ball 24 12.0 0.11 2500 31.6 2.15 26.0 52
TD802024M Sleeve or ball 24 12.0 0.15 3000 36.8 3.06 29.6 52
TD802024H Sleeve or ball 24 12.0 0.23 3500 43.7 4.20 32.5 52
