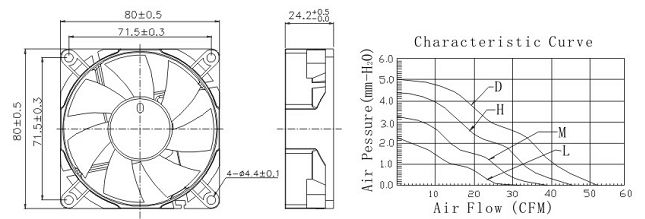

TD 8025-2
●DESIGN FEATURES
★BEARING sYSTEM:
SLEEVE BEARING&BALL BEARING
★IMPELLER:
PLASTIC WITH FIBER GLASS FILLED UL94V-o
★HOUsING:
PLASTICWITH FIBER GLASS FILLED UL94V-o
★cONNECTING:
WIRELEADS
★ALLOWABLE AMBIENT TEMPERATURE RANGE:-10℃ ~+70℃(Operation) -40℃ ~+80℃(Storage)
●SPECIFICATIONS
| Listed Model | Bearing System | Rated Voltage (VDC) | Startup Voltage (VDC) | Current (A) | Speed (RPM) | Air Flow (CFM) | Static Pressure (mmH20) | Noise Level (dBA) | Weight (g) |
| TD802512L | Sleeve or ball | 12 | 6.0 | 0.10 | 2500 | 32.4 | 2.23 | 27.0 | 57.0 |
| TD802512M | Sleeve or ball | 12 | 6.0 | 0.16 | 3000 | 38.9 | 3.22 | 31.0 | 57.0 |
| TD802512H | Sleeve or ball | 12 | 6.0 | 0.22 | 3500 | 45.4 | 4.38 | 34.3 | 57.0 |
| TD802512D | Sleeve or ball | 12 | 6.0 | 0.42 | 4200 | 51.8 | 5.02 | 38.9 | 57.0 |
| TD802524L | Sleeve or ball | 24 | 12 | 0.08 | 2500 | 32.4 | 2.23 | 27.0 | 57.0 |
| TD802524M | Sleeve or ball | 24 | 12 | 0.11 | 3000 | 38.9 | 3.22 | 31.0 | 57.0 |
| TD802524H | Sleeve or ball | 24 | 12 | 0.15 | 3500 | 45.4 | 4.38 | 34.3 | 57.0 |
| TD802524D | Sleeve or ball | 24 | 12 | 0.24 | 4200 | 51.8 | 5.02 | 38.9 | 57.0 |
