Product name

TD9733-K

Numbering
TD9733-K
Affiliate classification
没有此类产品
Product description

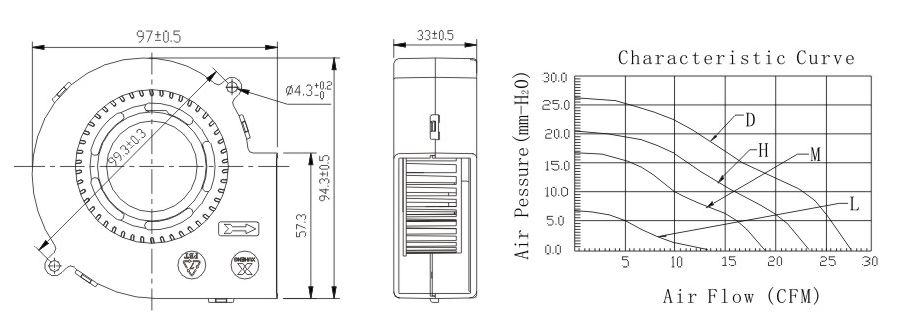

●DESIGN FEATURES
★BEARINGsvSTEM:
SLEEVEBEARING&BALL BEARING
★IMPELLER:
PLASTIC WITH FIBER GLASS FILLED UL 94V-0
★HOUSING:
PLASTIC WITH FIBER GLASS FILLED UL94V-0
★cONECTING:
WIRE LEADS
★ALLoWABLE AMBIENT TEMPERATURE RANGE:
-10℃ ~+70℃(Operation)-40℃ ~+80℃(Storage)

●SPECIFICATIONS


Listed Model Bearing System Rated Voltage (VDC) Startup Voltage (VDC) Current (A) Speed (RPM) Air Flow (CFM) Static Pressure (mmHO) Noise Level (dBA) WeightG
TD973324L Sleeve or ball 24 12 0.13 2000 13.2 6.8 27.6 147
TD973324M Sleeve or ball 24 12 0.21 2600 18.87 16.74 36.9 147
TD973324H Sleeve or ball 24 12 0.31 3200 23.22 20.6 45.45 147
TD973324D Sleeve or ball 24 12 0.71 3800 27.57 26.3 53.4 147
TD973312L Sleeve or ball 12 6 0.15 2000 13.2 6.8 27.6 147
TD973312M Sleeve or ball 12 6 0.32 2600 18.87 16.74 36.9 147
TD973312H Sleeve or ball 12 6 0.62 3200 23.22 20.6 45.45 147
TD973312D Sleeve or ball 12 6 127 3800 27.57 26.3 53.4 147
