  • TD8025-5-3-PHASE.jpg

TD 8025-5

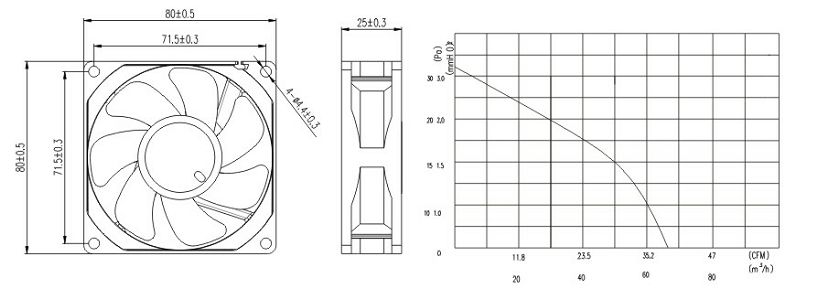

Outline:

Classification:

DC/EC Axial Fan /Square Fan


Product Description




●DESIGN FEATURES
★BEARING sYSTEM:
SLEEVE BEARING&BALL BEARING
★IMPELLER:
PLASTIC WITH FIBER GLASS FILLED UL94V-o
★HOUsING:
PLASTICWITH FIBER GLASS FILLED UL94V-o
★cONNECTING:
WIRELEADS
★ALLOWABLE AMBIENT TEMPERATURE RANGE:-10℃ ~+70℃(Operation) -40℃ ~+80℃(Storage)

●SPECIFICATIONS


Model Bearing System Voltage v Voltage Range Current A Power W Speed RPM Noise DBA Air Flow Static Pressure  Weight G
M³/H CFM Pa mmH2O
TD802512MB Ball 12VDC 9-13.2 0.18 22 3000 31 66 38.9 32.2 3.22 60
