Product name

TD 8038

Numbering
TD 8038
没有此类产品
Product description




●DESIGN FEATURES
★BEARING sYSTEM:
SLEEVE BEARING&BALL BEARING
★IMPELLER:
PLASTIC WITH FIBER GLASS FILLED UL94V-o
★HOUsING:
PLASTICWITH FIBER GLASS FILLED UL94V-o
★cONNECTING:
WIRELEADS
★ALLOWABLE AMBIENT TEMPERATURE RANGE:-10℃ ~+70℃(Operation) -40℃ ~+80℃(Storage)

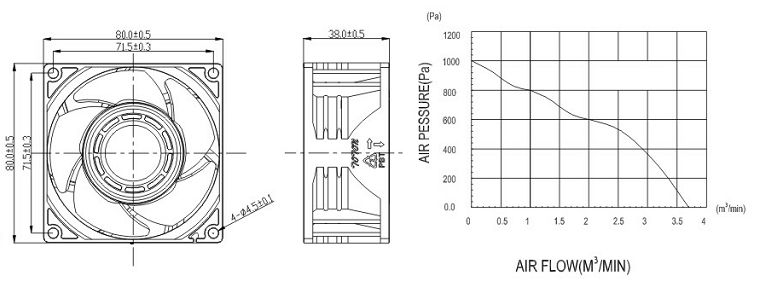

●SPECIFICATIONS


Model Bearing System Voltage v Voltage Range Current A Power W Speed RPM Noise DBA Air Flow Static Pressure
M³/H CFM Pa mmH2O
TD803812HB Ball 12VDC 6-13.2 3.4 40.8 14900 69 222 130.7 1000 102
TD803824HB Ball 24VDC 12-26.4 1.7 40.8 14900 69 222 130.7 1000 102
TD803848HB Ball 48VDC 24-52.8 0.85 40.8 14900 69 222 130.7 1000 102
Corresponding parameter set not found, please add it in property template of background
