Product Description
●DESIGN FEATURES
★BEARING sYSTEM:
SLEEVE BEARING&BALL BEARING
★IMPELLER:
PLASTIC WITH FIBER GLASS FILLED UL94V-o
★HOUsING:
PLASTICWITH FIBER GLASS FILLED UL94V-o
★cONNECTING:
WIRELEADS
★ALLOWABLE AMBIENT TEMPERATURE RANGE:-10℃ ~+70℃(Operation) -40℃ ~+80℃(Storage)

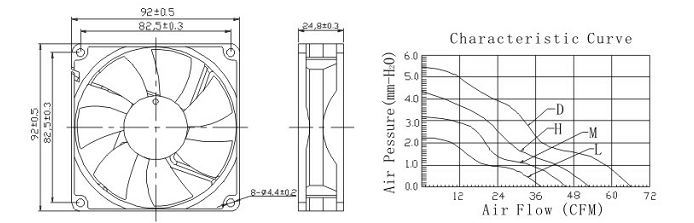

●SPECIFICATIONS
| Listed Model | Bearing System | Rated Voltage (VDC) | Startup Voltage (VDC) | Current (A) | Speed (RPM) | Air Flow (CFM) | Static Pressure (mmH20) | Noise Level (dBA) | Weight (g) |
| TD902512L | Sleeve or ball | 12 | 6.0 | 0.14 | 2000 | 37.7 | 2.22 | 31.4 | 76.0 |
| TD902512M | Sleeve or ball | 12 | 6.0 | 0.17 | 2400 | 45.3 | 3.20 | 35.4 | 76.0 |
| TD902512H | Sleeve or ball | 12 | 6.0 | 0.21 | 2800 | 52.8 | 4.36 | 38.7 | 76.0 |
| TD902524L | Sleeve or ball | 24 | 12.0 | 0.10 | 2000 | 37.7 | 2.22 | 31.4 | 76.0 |
| TD902524M | Sleeve or ball | 24 | 12.0 | 0.11 | 2400 | 45.3 | 3.20 | 35.4 | 76.0 |
| TD902524H | Sleeve or ball | 24 | 12.0 | 0.16 | 2800 | 52.8 | 4.36 | 38.7 | 76.0 |
| TD902524D | Sleeve or ball | 24 | 12.0 | 0.30 | 3500 | 66.0 | 5.45 | 44.4 | 76.0 |
