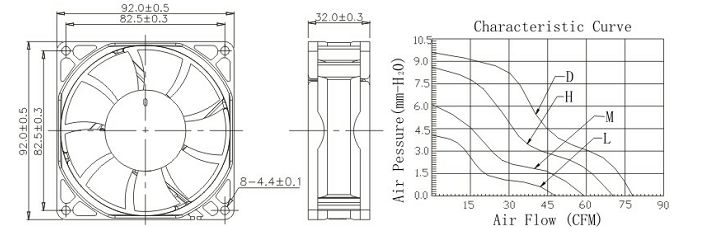

TD 9232
●DESIGN FEATURES
★BEARING sYSTEM:
SLEEVE BEARING&BALL BEARING
★IMPELLER:
PLASTIC WITH FIBER GLASS FILLED UL94V-o
★HOUsING:
PLASTICWITH FIBER GLASS FILLED UL94V-o
★cONNECTING:
WIRELEADS
★ALLOWABLE AMBIENT TEMPERATURE RANGE:-10℃ ~+70℃(Operation) -40℃ ~+80℃(Storage)
●SPECIFICATIONS
| Listed Model | Bearing System | Rated Voltage (VDC) | Startup Voltage (VDC) | Current (A) | Speed (RPM) | Air Flow (CFM) | Static Pressure (mmH20) | Noise Level (dBA) | Weight (g) |
| TD923212L | Sleeve or ball | 12 | 6.0 | 0.22 | 2600 | 48.1 | 4.04 | 34.8 | 137.0 |
| TD923212M | Sleeve or ball | 12 | 6.0 | 0.53 | 3200 | 59.2 | 6.13 | 39.3 | 137.0 |
| TD923212H | Sleeve or ball | 12 | 6.0 | 0.86 | 3800 | 70.3 | 8.64 | 43.0 | 137.0 |
| TD923212D | Sleeve or ball | 12 | 6.0 | 1.28 | 4200 | 77.7 | 9.54 | 45.5 | 137.0 |
| TD923224L | Sleeve or ball | 24 | 12 | 0.16 | 2600 | 48.1 | 4.04 | 34.8 | 137.0 |
| TD923224M | Sleeve or ball | 24 | 12 | 0.26 | 3200 | 59.2 | 6.13 | 39.3 | 137.0 |
| TD923224H | Sleeve or ball | 24 | 12 | 0.41 | 3800 | 70.3 | 8.64 | 43.0 | 137.0 |
| TD923224D | Sleeve or ball | 24 | 12 | 0.94 | 4200 | 77.7 | 9.54 | 45.5 | 137.0 |
