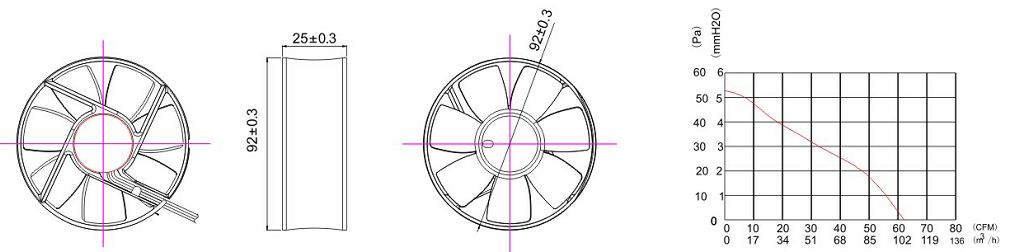

TD 9225（3 phase motor）
●DESIGN FEATURES
★BEARING sYSTEM:
SLEEVE BEARING&BALL BEARING
★IMPELLER:
PLASTIC WITH FIBER GLASS FILLED UL 94v-o
★HOUsING:
PLASTIC WITH FIBER GLASS FILLED UL94V-o
★cONNECTING:
WIRE LEADS
★ALLOWABLE AMBIENT TEMPERATURE RANGE:-10℃ ~+70℃(operation)-40℃~+80c(Storage)
●SPECIFICATIONS
| Model | Bearing System | Voltage v | Voltage Range | Current A | Power W | Speed RPM | Noise DBA | Air Flow | Static Pressure | Weight G | ||
| M³/H | CFM | Pa | mmH2O | |||||||||
| TD922512HB | Ball | 12VDC | 9一132 | 0.27 | 32 | 3300 | 41.7 | 104.1 | 61.2 | 52.9 | 5.4 | 76 |
