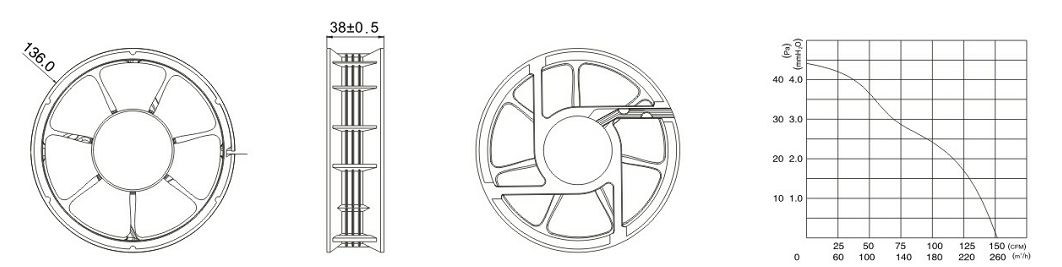

TD 1338
★Insuation:Class B
★Type of protection:lP42
★Mode of operation:S1
★Certification:ULICULICElCcc
★Operation Temperature:-20--70°
★Material:PBT
★Available Features: ·Tachilable Out put
Autorestart
●Slow startup
● Pulse wIDTH Modulation
● control input 0--5VDC
★EMC:Interference emission acc.to EN61000-6-3
lnterference immunily acc.to EN61000-6-2
Product conforming to standard: EN 60950-1
●SPECIFICATIONS
| Model | Bearing System | Voltage v | Voltage Range | Current A | Power W | Speed RPM | Noise DBA | Air Flow | Static Pressure | Weight G | ||
| M³/H | CFM | Pa | mmH2O | |||||||||
| TD133824HB-S | Ball 24VDC | 20—28 | 0.19 | 4.8 3000 | 46.6 | 264 | 155 | 43.5 | 4.44 | 1200 | ||
