TD 20060
★Insuation:Class B
★Type of protection:lP42
★Mode of operation:S1
★Certification:ULICULICElCcc
★Operation Temperature:-20--70°
★Mode of operation：S1
★Available Features: ·Tachilable Out put
Autorestart
●Slow startup
● Pulse wIDTH Modulation
● control input 0--10VDC
★EMC:Interference emission acc.to EN61000-6-3
lnterference immunily acc.to EN61000-6-2
Product conforming to standard: EN 60950-1

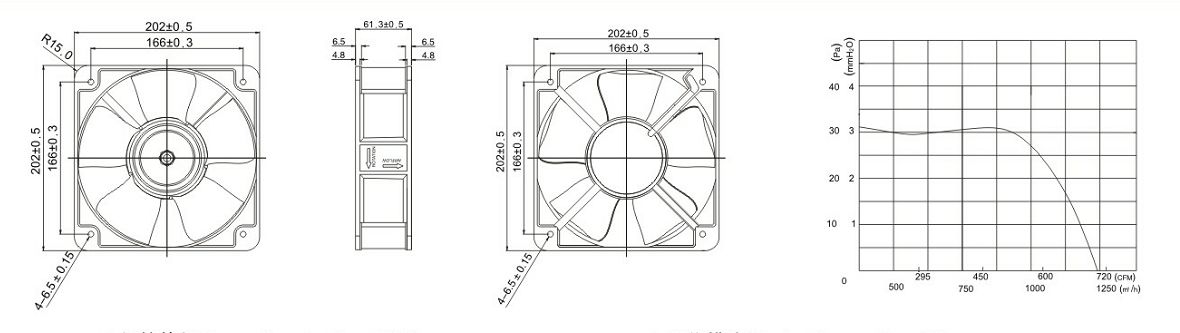

●SPECIFICATIONS
| Model | Bearing System | Voltage v | Voltage Range | Current A | Power W | Speed RPM | Noise DBA | Air Flow | Static Pressure | Weight G | ||
| M³/H | CFM | Pa | mmH2O | |||||||||
| TD2006024HB-S | Ball | 24VDC | 12-26.4 | 4.12 | 98.8 | 3900 | 94.0 | 1221 | 718 | 283 | 28.3 | 1250 |
| TD2006048HB-S | Ball | 48VDC | 24-57 | 2.06 | 98.8 | 3900 | 94.0 | 1221 | 718 | 283 | 28.3 | 1250 |
