Product Description
★Insuation:Class B
★Type of protection:lP42
★Mode of operation:S1
★Certification:ULICULICElCcc
★Operation Temperature:-20--70°
★Mode of operation：S1
★Available Features: ·Tachilable Out put
Autorestart
●Slow startup
● Pulse wIDTH Modulation
● control input 0--10VDC
★EMC:Interference emission acc.to EN61000-6-3
lnterference immunily acc.to EN61000-6-2
Product conforming to standard: EN 60950-1

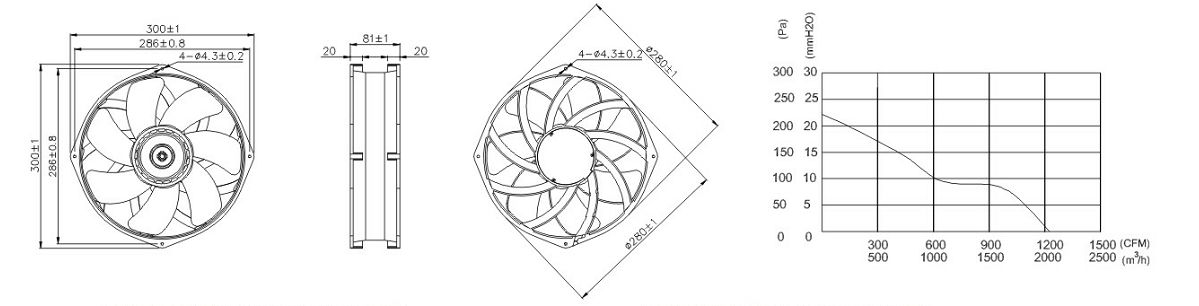

●SPECIFICATIONS
| Model | Bearing System | Voltage v | Voltage Range | Current A | Power W | Speed RPM | Noise DBA | Air Flow | Static Pressure | ||
| M³/H | CFM | Pa | mmH2O | ||||||||
| TE2808002HB | Ball | 220VAC | 85-265 | 0.70 | 105 | 2100 | 69 | 2077 | 1222 | 220 | 22.4 |
| TD2808024HB | Ball | 24VDC | 12-26.4 | 4.5 | 105 | 2100 | 69 | 2077 | 1222 | 220 | 22.4 |
| TD2808048HB | Ball | 48VDC | 24-57 | 2.5 | 105 | 2100 | 69 | 2077 | 1222 | 220 | 22.4 |
