TD7926-MF

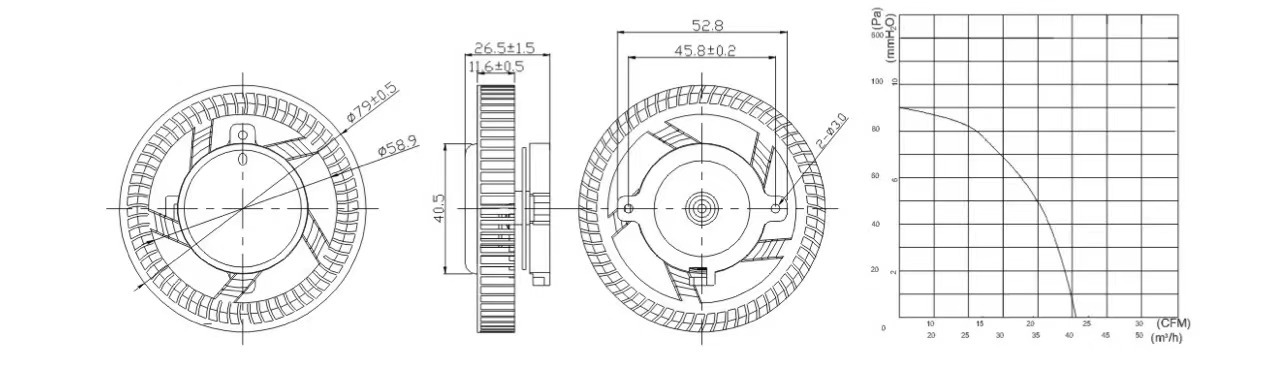

Outline:

Classification:

DC/EC Forwarded Curved Centrifugal Fan


Product Description

Insuation:Class B

Tvpeofprotection:IP42

Modeofoperation:S1

Certification:UL\CUL\CE\CCC

OperationTemperature e:-25--70

Material:Sheetsteel\Aluminum\Pa66

AvailableFeatures:·TachilableOutput

·Autorestart

. Slowstartup

·PulseWIDTHModulation

·Controlinput 0--5VDC

EMC:InterferenceemissionacctoEN61000-6-3

Interferenceimmunily ac cc.toEN61000-6-2

ProductconformingtostandardEN60950-1



Model Bearing
System
Voltage
Voltage Range  Current
A
Power
W
Speed
RPM
Noise
DBA
Air  Flow Static Pressure Weight
G
M³/H CFM Pa mmH₂O
TD792612L Sleeve 12VDC 9-13.2 0.26 3.12 2653 42 40.8 24 90 9.12 105
