PRODUCTS CENTER
Product Description
★lnsuation:Class B
★Type of protection:lP42
★Mode of operation:S1
★Certification:UL/CUL/CE/CCC
★Operation Temperature:-20--70℃
★Material:Pa66
★Available Features:
·Tachilable Out put
·Autorestart
·Slow startup
·Pulse wIDTH Modulation
·control input 0--10VDC
★EMC:Interference emission acc.to EN 61000-6-3
★lnterference immunily acc.to EN 61000-6-2
Product conforming to standard: EN 60950-1

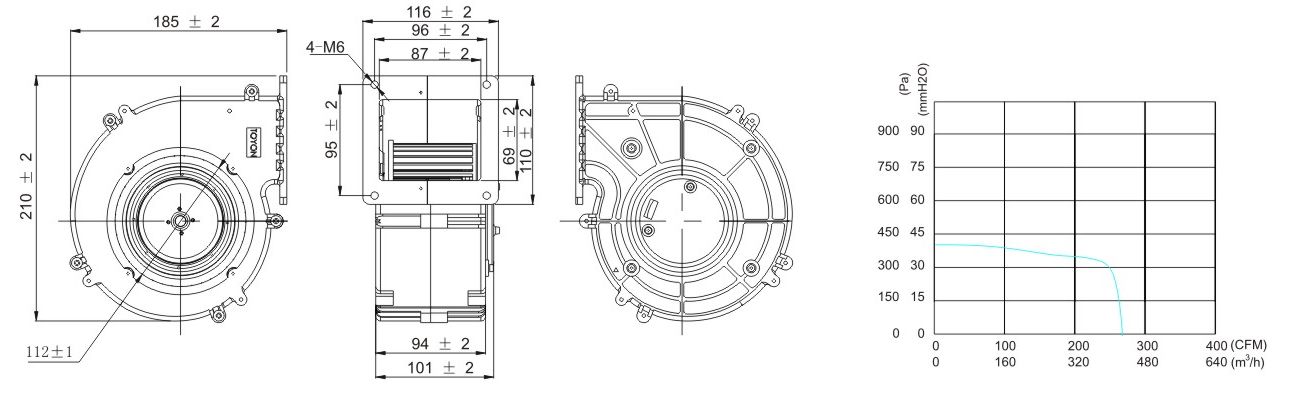

●SPECIFICATIONS
| Model | Bearing System | Voltage v | Voltage Range | Current A | Power W | Speed RPM | Noise DBA | Air Flow | Static Pressure | Weight G | ||
| M³/H | CFM | Pa | mmH₂O | |||||||||
| TD1337224HB-K1 | Ball | 24VDC | 24--28 | 2.5 | 60 | 2000 | 50 | 406 | 239 | 399 | 40.7 | 2231 |
| TD1337248HB-K1 | Ball | 48VDC | 24--57 | 1.25 | 60 | 2000 | 50 | 406 | 239 | 399 | 40.7 | 2231 |
