TD18092-K1

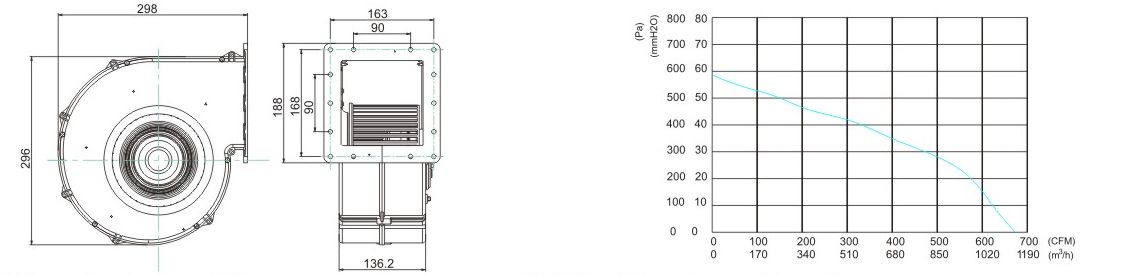

Outline:

Classification:

Blower;DC /EC Blower


Product Description




★lnsuation:Class B
★Type of protection:lP42
★Mode of operation:S1
★Certification:UL/CUL/CE/CCC
★Operation Temperature:-20--70℃
★Material:Sheet steel \Aluminum\Pa66
★Available Features:
·Tachilable Out put
·Autorestart
·Slow startup
·Pulse wIDTH Modulation
·control input 0--10VDC
★EMC:Interference emission acc.to EN 61000-6-3
★lnterference immunily acc.to EN 61000-6-2
★Product conforming to standard: EN 60950-1

●SPECIFICATIONS


Model Bearing System Voltage v Voltage Range Current A Power W Speed RPM Noise DBA Air Flow Static Pressure Weight G
M³/H CFM Pa mmHO
TD1809224HB-K1 Ball 24VDC 20-27 5.3 127 1300 63 1118 658 580 59.2 2395
TD1809248HB-K1 Ball 48VDC 20-57 2.65 127 1300 63 1118 658 580 59.2 2408
TD180903HB-K1 Ball 310VDC 120-370 0.4 127 1300 63 1118 658 580 59.2 2408
