Product Description
★lnsuation:Class B
★Type of protection:lP42
★Mode of operation:S1
★Certification:UL/CUL/CE/CCC
★Operation Temperature:-20--70℃
★Material:Sheet steel \Aluminum\Pa66
★Available Features:
·Tachilable Out put
·Autorestart
·Slow startup
·Pulse wIDTH Modulation
·control input 0--10VDC
★EMC:Interference emission acc.to EN 61000-6-3
★lnterference immunily acc.to EN 61000-6-2
★Product conforming to standard: EN 60950-1

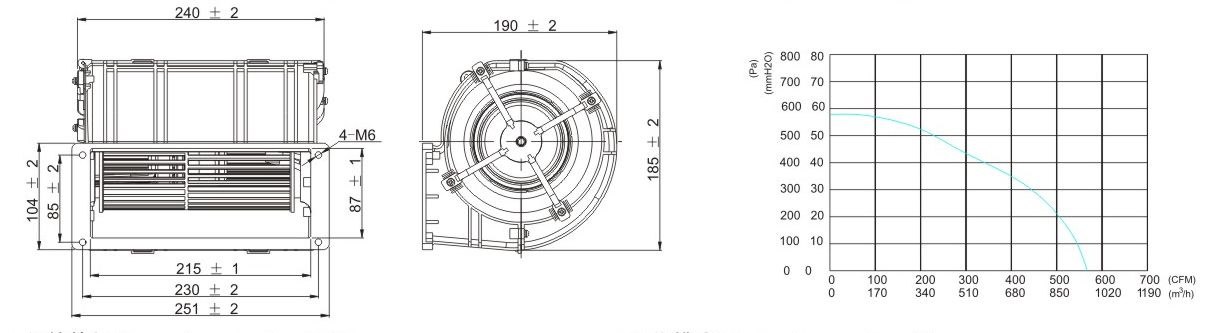

●SPECIFICATIONS
| Model | Bearing System | Voltage v | Voltage Range | Current A | Power W | Speed RPM | Noise DBA | Air Flow | Static Pressure | Weight G | ||
| M³/H | CFM | Pa | mmH₂O | |||||||||
| TD13019024HB-K1 | Ball | 24VDC | 20-28 | 5 | 120 | 1700 | 59.5 | 954.5 | 561.5 | 568.7 | 58 | 2531.5 |
| TD13019048HB-K1 | Ball | 48VDC | 24-57 | 25 | 120 | 1700 | 59.5 | 954.5 | 561.5 | 568.7 | 58 | 2531.5 |
