Product Description
★lnsuation:Class B
★Type of protection:lP42
★Mode of operation:S1
★Certification:UL/CUL/CE/CCC
★Operation Temperature:-20--70℃
★Material:Pa66
★Available Features:
·Tachilable Out put
·Autorestart
·Slow startup
·Pulse wIDTH Modulation
·control input 0--10VDC
★EMC:Interference emission acc.to EN 61000-6-3
★lnterference immunily acc.to EN 61000-6-2
Product conforming to standard: EN 60950-1

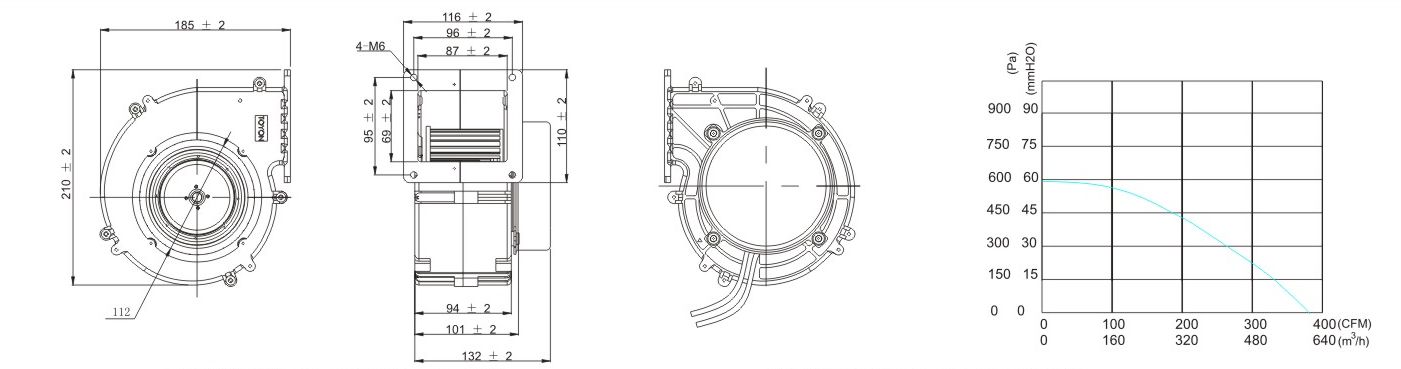

●SPECIFICATIONS
Model | Bearing System | Voltage v | Voltage Range | Current A | Power W | Speed RPM | Noise DBA | Air Flow | Static Pressure | Weight G | ||
M³/H | CFM | Pa | mmH₂O | |||||||||
TE1337201HB-K1 | Ball | 110VAC | 85--130 | 12 | 132 | 2300 | 68 | 475 | 279 | 576 | 57.6 | 2231 |
TE1337202HB-K1 | Ball | 220VAC | 85--265 | 0.58 | 89 | 2170 | 67 | 450 | 265 | 566 | 55 | 2231 |
