  • TD、TD90400-H图.jpg

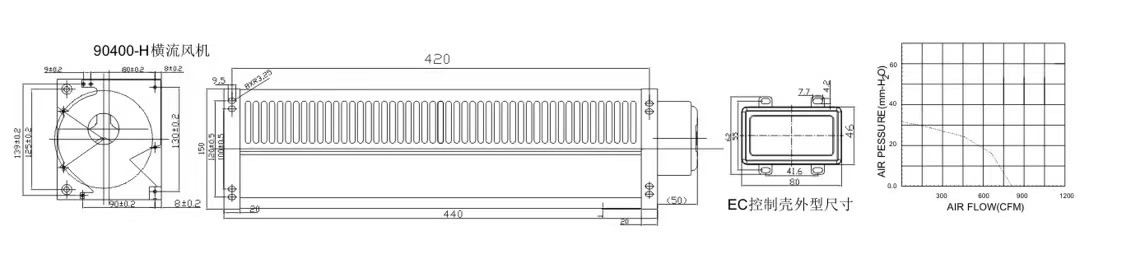

TD/TE90400-H

Outline:

Classification:

DC/EC Cross Flow Fan


Product Description

Insuation:Class B

Tvpeofprotection:IP42

Modeofoperation:S1

Certification:UL\CUL\CE\CCC

OperationTemperature e:-25--70

Material:Sheetsteel\Aluminum\Pa66

AvailableFeatures:·TachilableOutput

·Autorestart

. Slowstartup

·PulseWIDTHModulation

·Controlinput 0--5VDC

EMC:InterferenceemissionacctoEN61000-6-3

Interferenceimmunily ac cc.toEN61000-6-2

ProductconformingtostandardEN60950-1

Model Bearing System  Voltage
Voltage Range  Current
A
Power
W
Speed
RPM
Noise
DBA
Air  Flow Static Pressure Weight
G
M³/H CFM Pa mmH₂O
TE9040002HB-H Ball 230VAC 85-252 0.83 131 2500 61.6 1250 735 30.6 3.06 980
TE9040001HB-H Ball 110VAC 85-130 1.66 131 2500 61.6 1250 735 30.6 3.06 980
TD9040048HB-H Ball 48VDC 24-57 2.57 123.36 2500 61.6 1250 735 30.6 3.06 980
TD9040024HB-H Ball 24VDC 20-26.4 5.14 123.36 2500 61.6 1250 735 30.6 3.06 980
