TD/TE90800-H

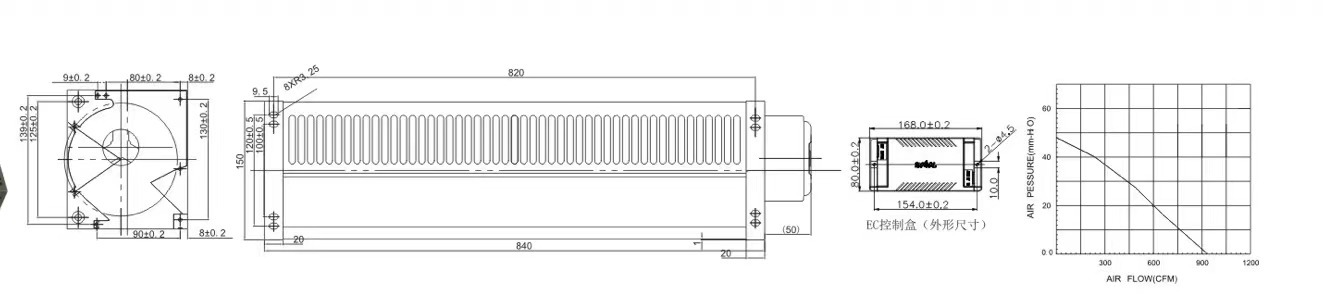

Outline:

Classification:

DC/EC Cross Flow Fan


Product Description

Insuation:Class B

Tvpeofprotection:IP42

Modeofoperation:S1

Certification:UL\CUL\CE\CCC

OperationTemperature e:-25--70

Material:Sheetsteel\Aluminum\Pa66

AvailableFeatures:·TachilableOutput

·Autorestart

. Slowstartup

·PulseWIDTHModulation

·Controlinput 0--5VDC

EMC:InterferenceemissionacctoEN61000-6-3

Interferenceimmunily ac cc.toEN61000-6-2

ProductconformingtostandardEN60950-1

Model Bearing System  Voltage
Voltage Range  Current
A
Power
W
Speed
RPM
Noise
DBA
Air  Flow Static Pressure Weight
G
M³/H CFM Pa mmH₂O
TE9080001HB-H Ball 110VAC 85-130 0.80  60 1600 62.5 1500 882 44 4.49 1130
TE9080002HB-H Ball 220VAC 85-265 0.4 60 1600 62.5 1500 882 44 4.49 1130
TD9080048HB-H Ball 48VDC 24-57 1.0  48 1600 62.5 1500 882 44 4.49 1130
TD9080024HB-H Ball 24VDC 20-26.4 2.0  48 1600 62.5 1500 882 44 4.49 1130
