TD10025-PB

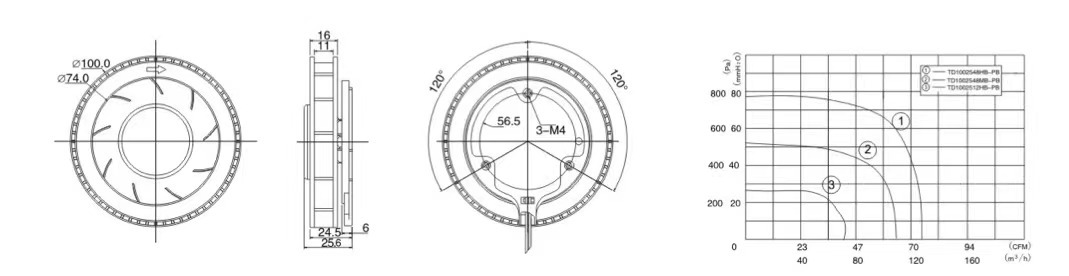

Outline:

Classification:

DC/EC Backward Curved Centrifugal Fan


Product Description

Insuation:Class B

Tvpeofprotection:IP42

Modeofoperation:S1

Certification:UL\CUL\CE\CCC

OperationTemperature e:-25--70

Material:Sheetsteel\Aluminum\Pa66

AvailableFeatures:·TachilableOutput

·Autorestart

. Slowstartup

·PulseWIDTHModulation

·Controlinput 0--5VDC

EMC:InterferenceemissionacctoEN61000-6-3

Interferenceimmunily ac cc.toEN61000-6-2

ProductconformingtostandardEN60950-1



Model Bearing
System
Voltage
Voltage Range  Current
A
Power
W
Speed
RPM
Noise
DBA
Air  Flow Static Pressure
M³/H CFM Pa mmH₂O
TD1002512HB-PB Ball 12VDC 6-13.8 0.4 4.8 3200 30 53.2 31.2 280 28.5
TD1002524HB-PB Ball 24VDC 12-26.4 0.2 4.8 3200 30 53.2 31.2 280 28.5
